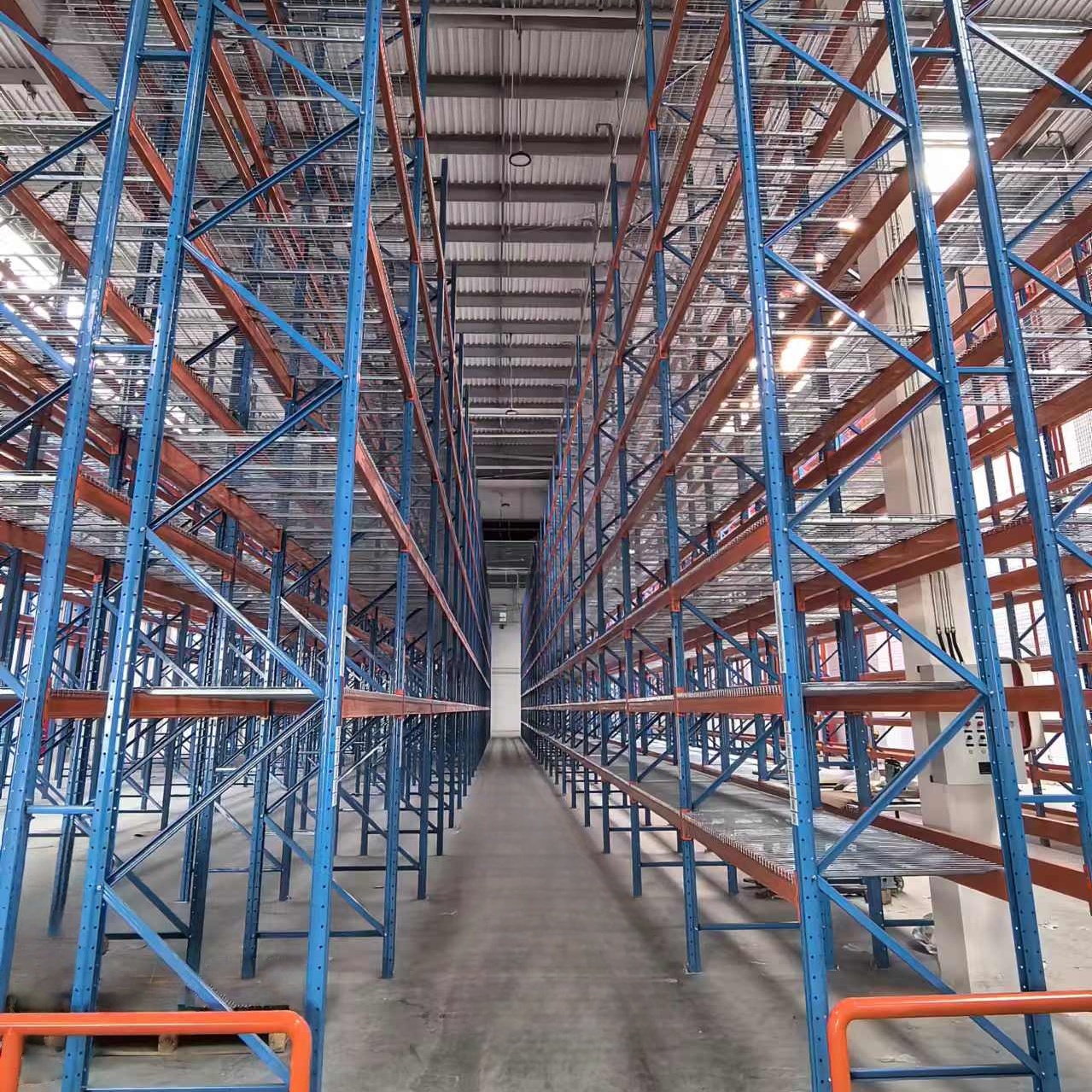

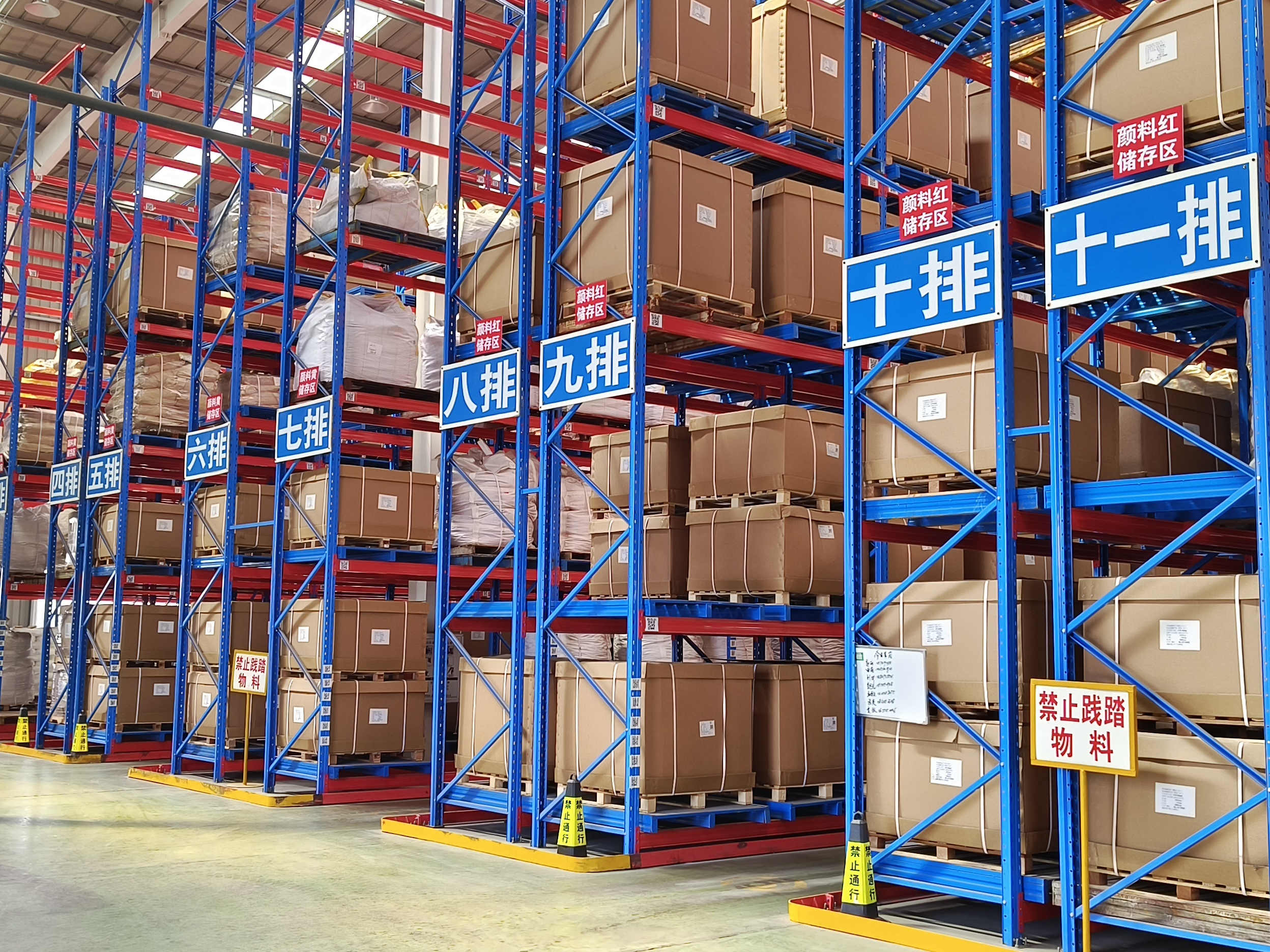

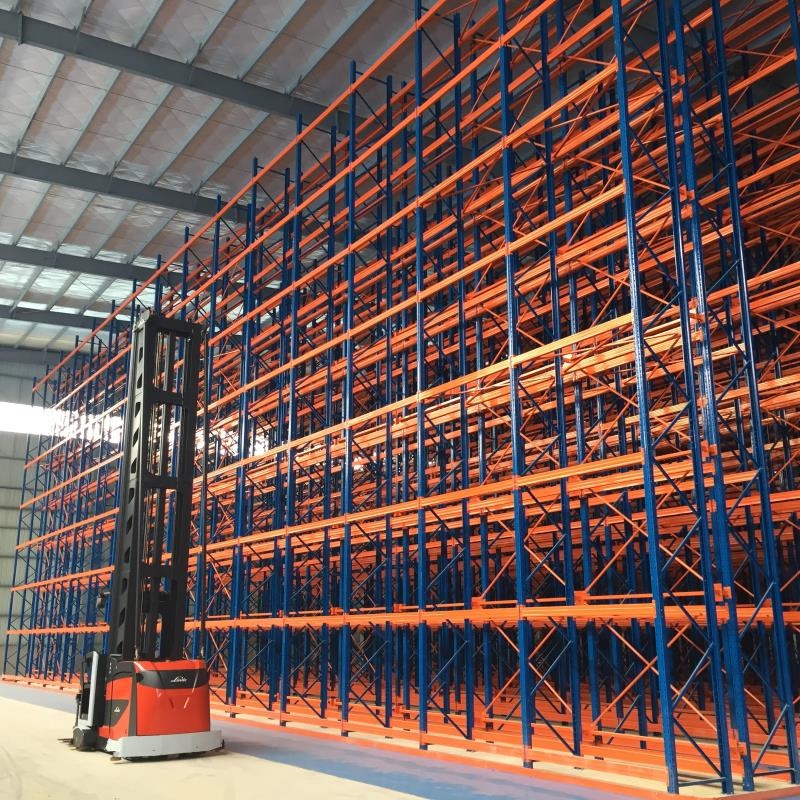

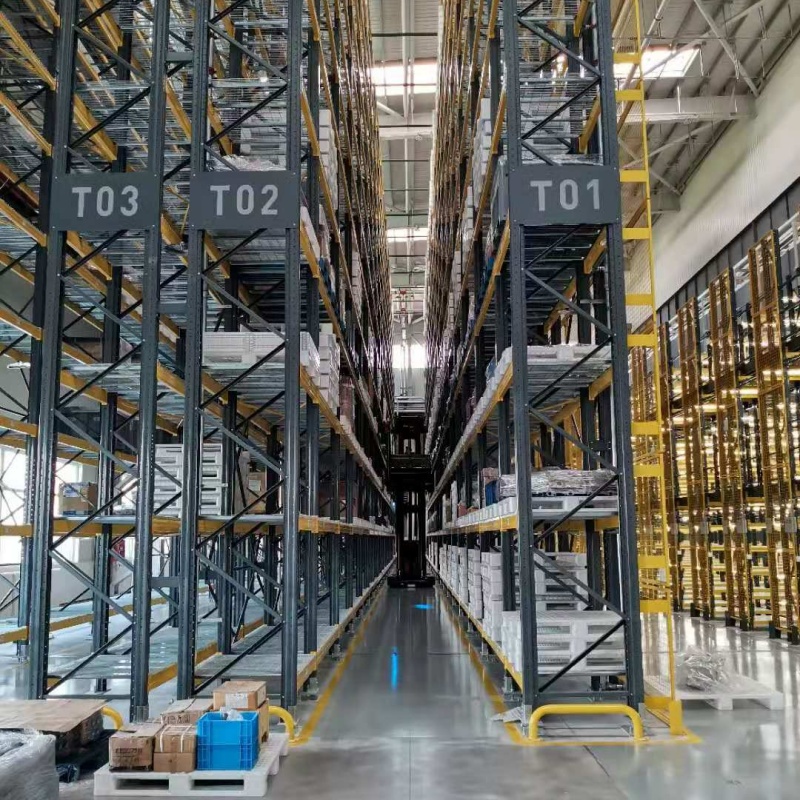

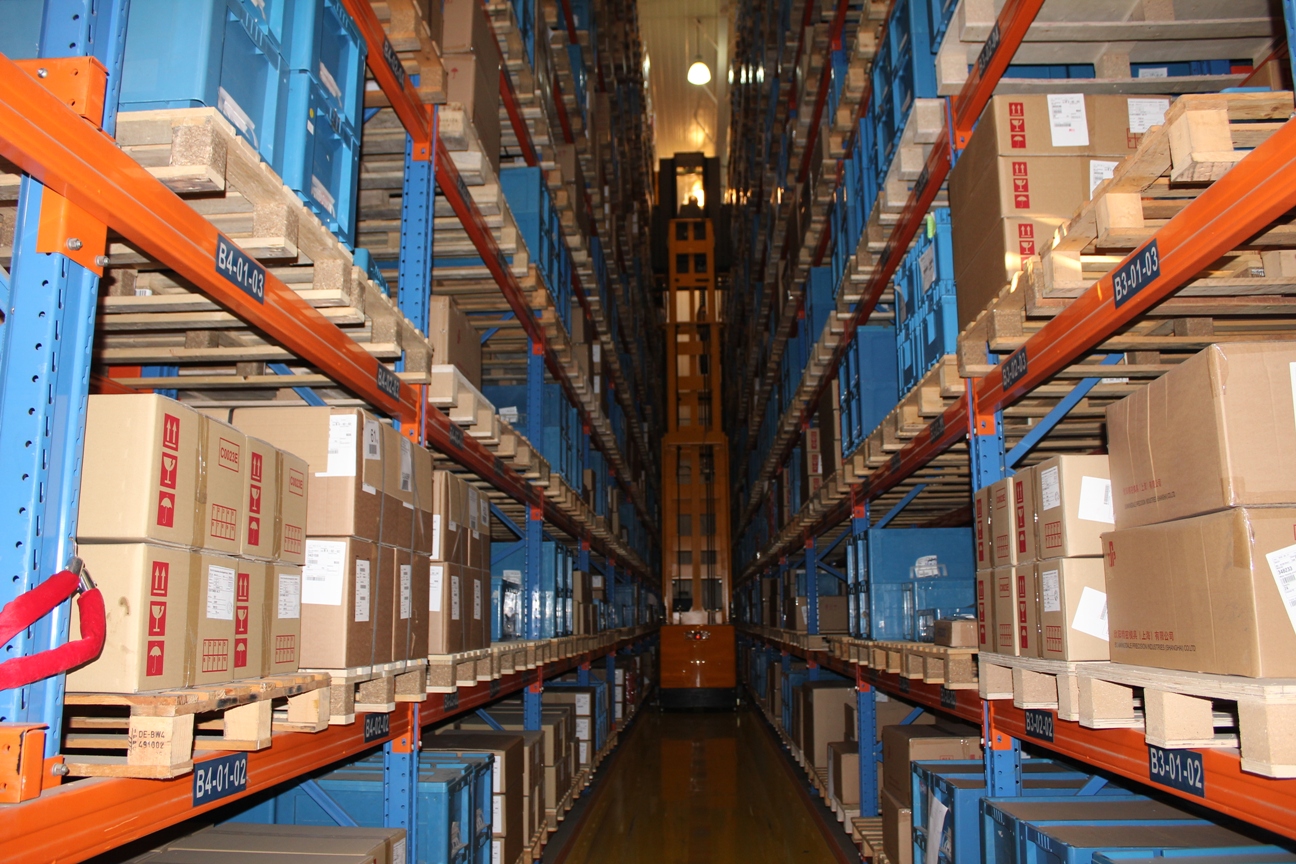

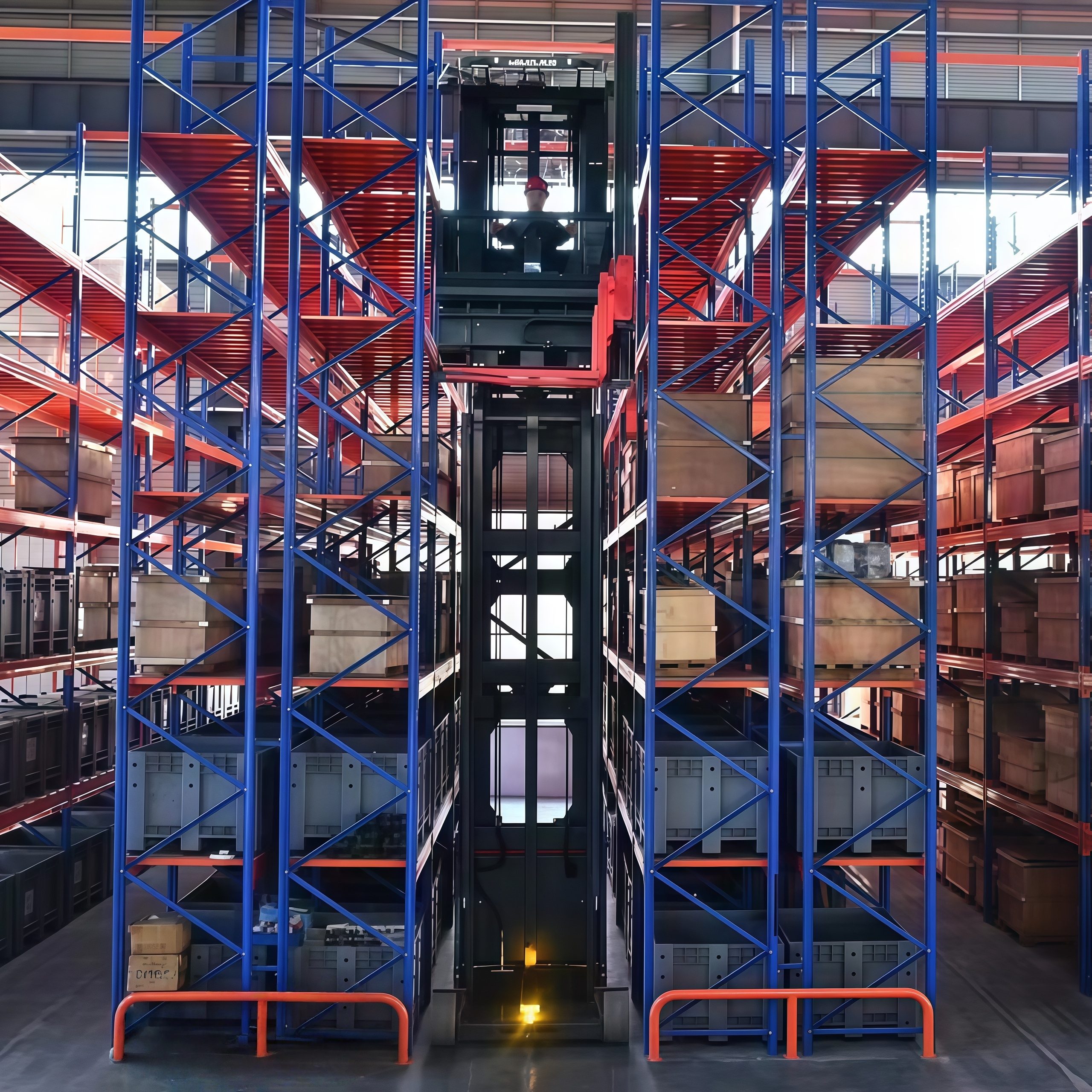

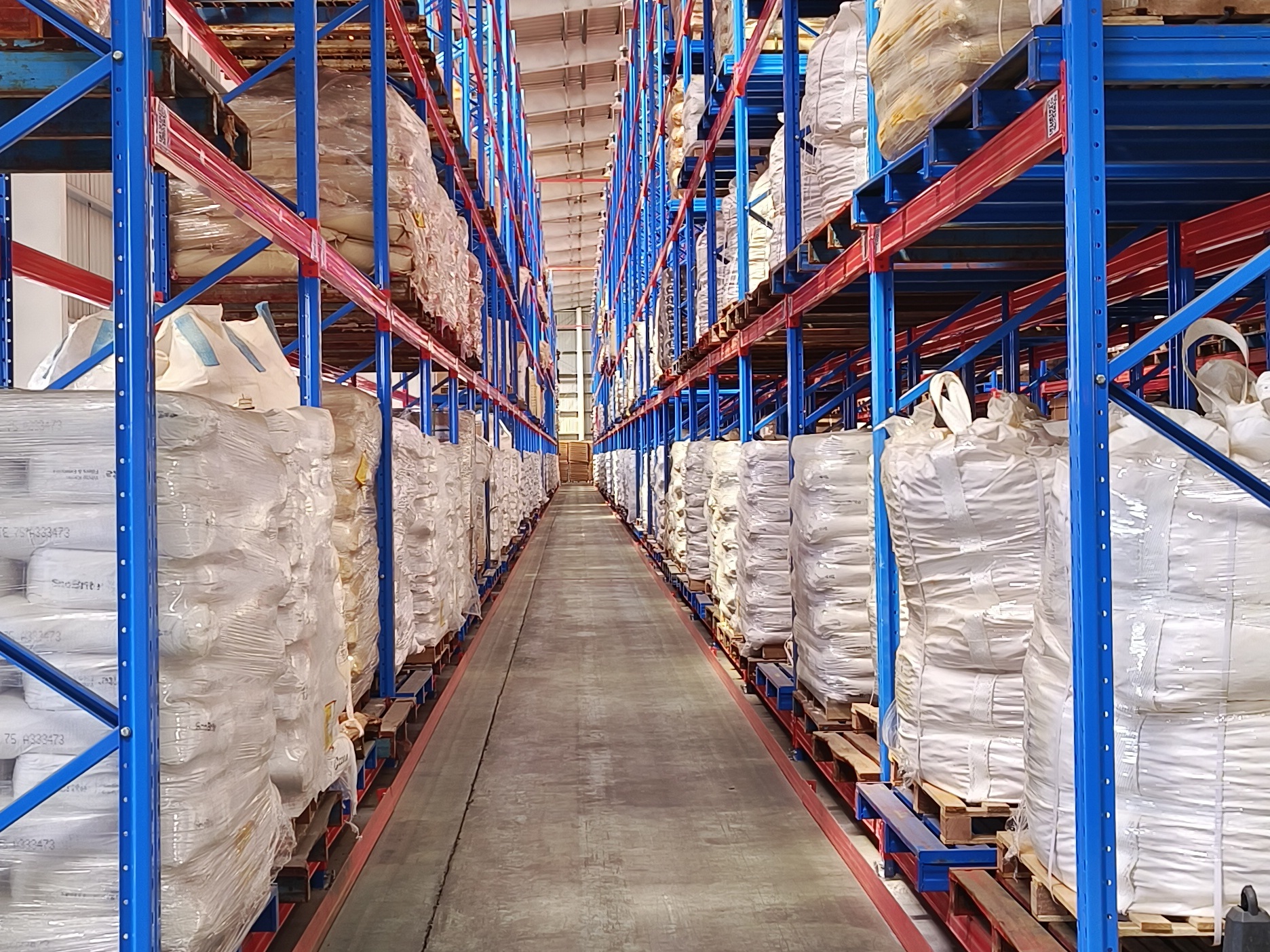

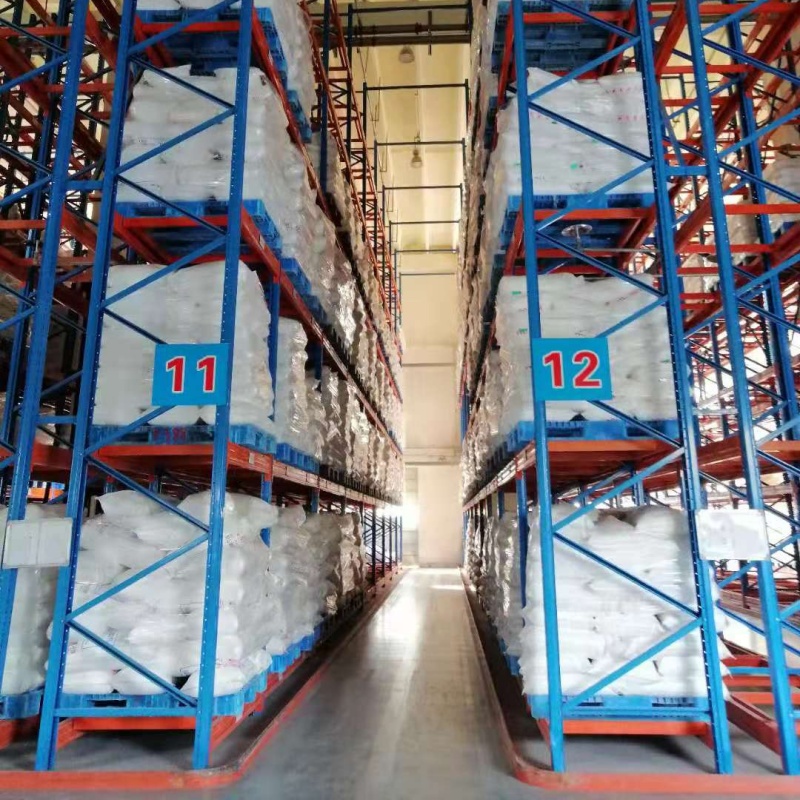

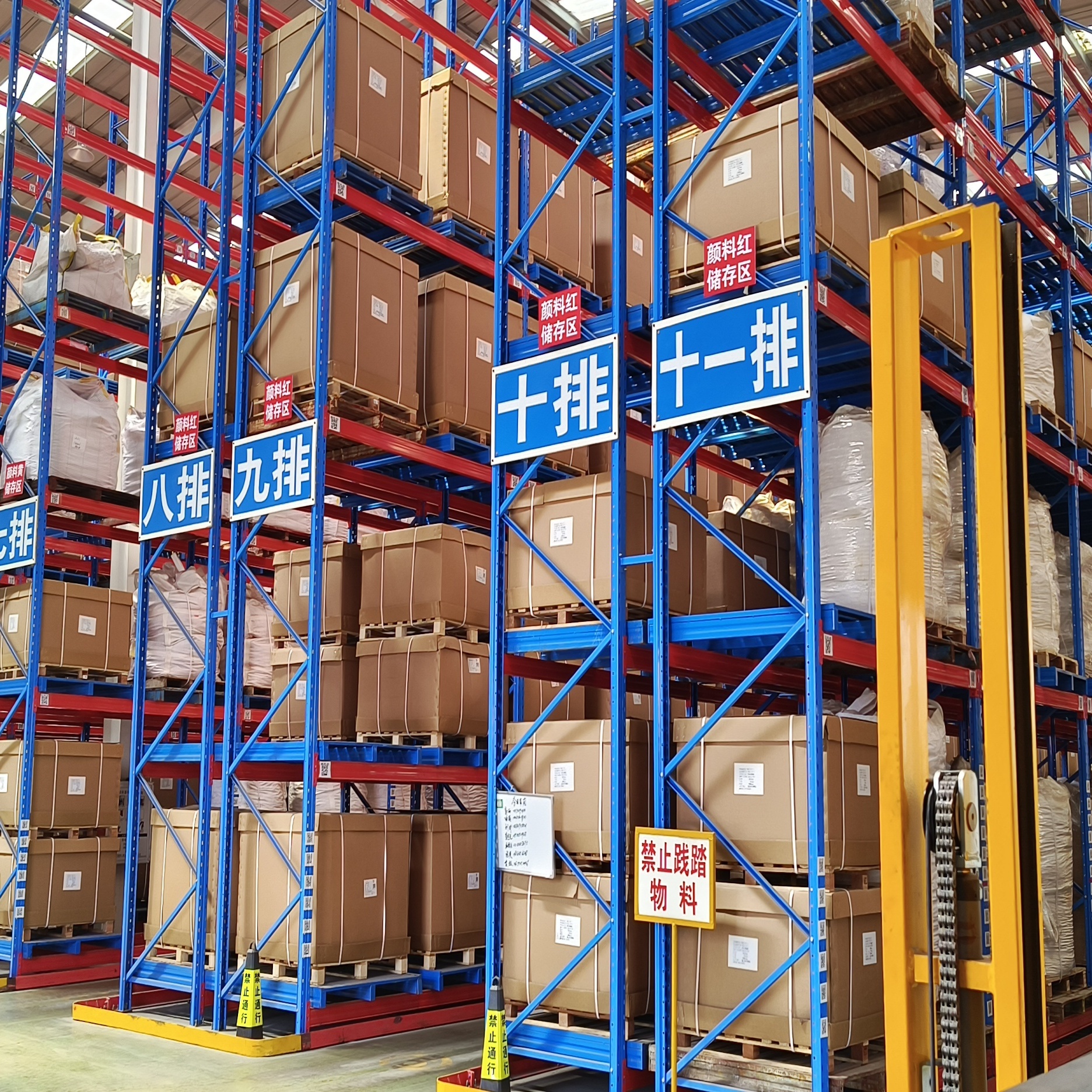

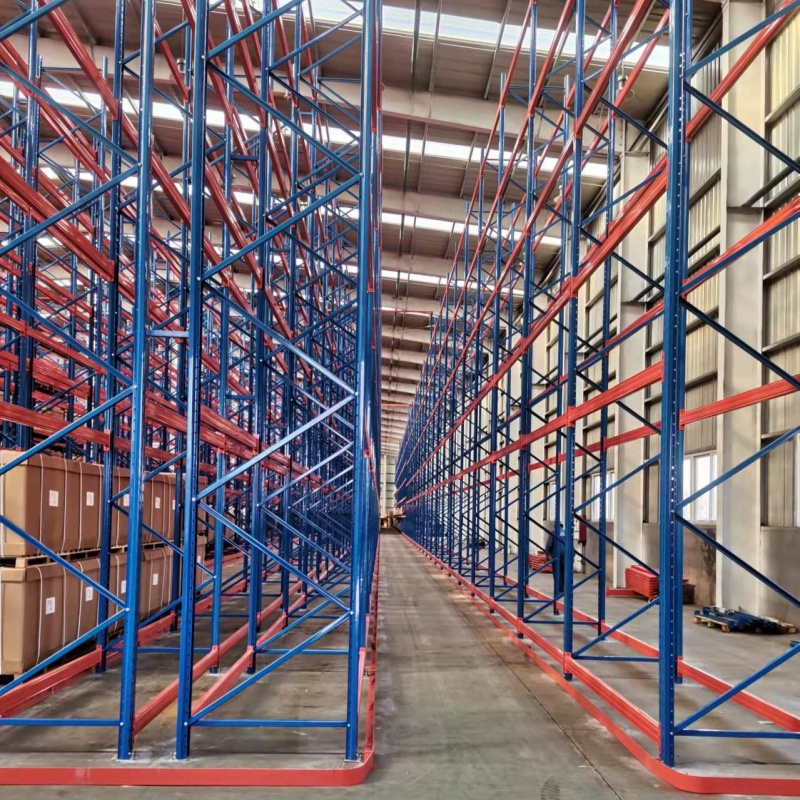

The narrow aisle racking system is a kind of warehouse storage pallet racking. Its forklift handling channel is relatively narrow, so it is called narrow roadway or narrow aisle racking system, which is abbreviated as VNA pallet racking system. Fast storage efficiency and very high storage density bring significant production efficiency and cost-effectiveness to users.

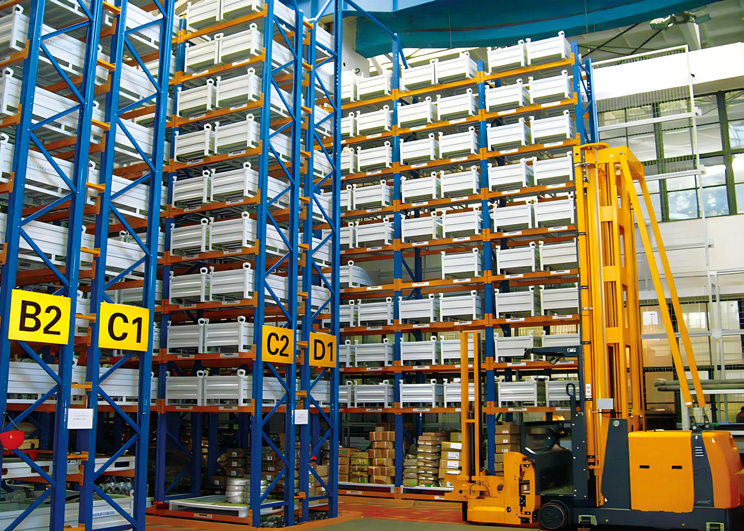

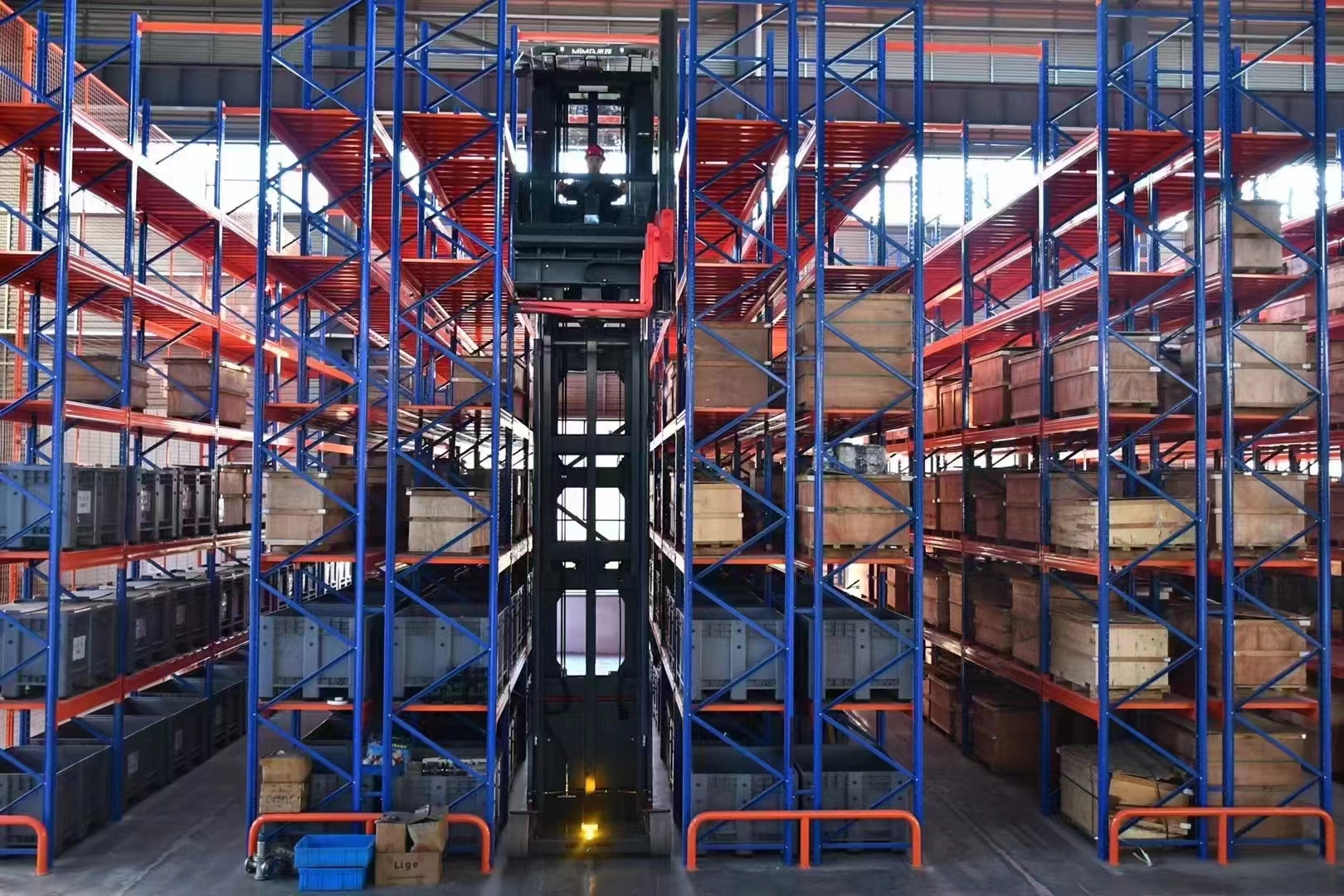

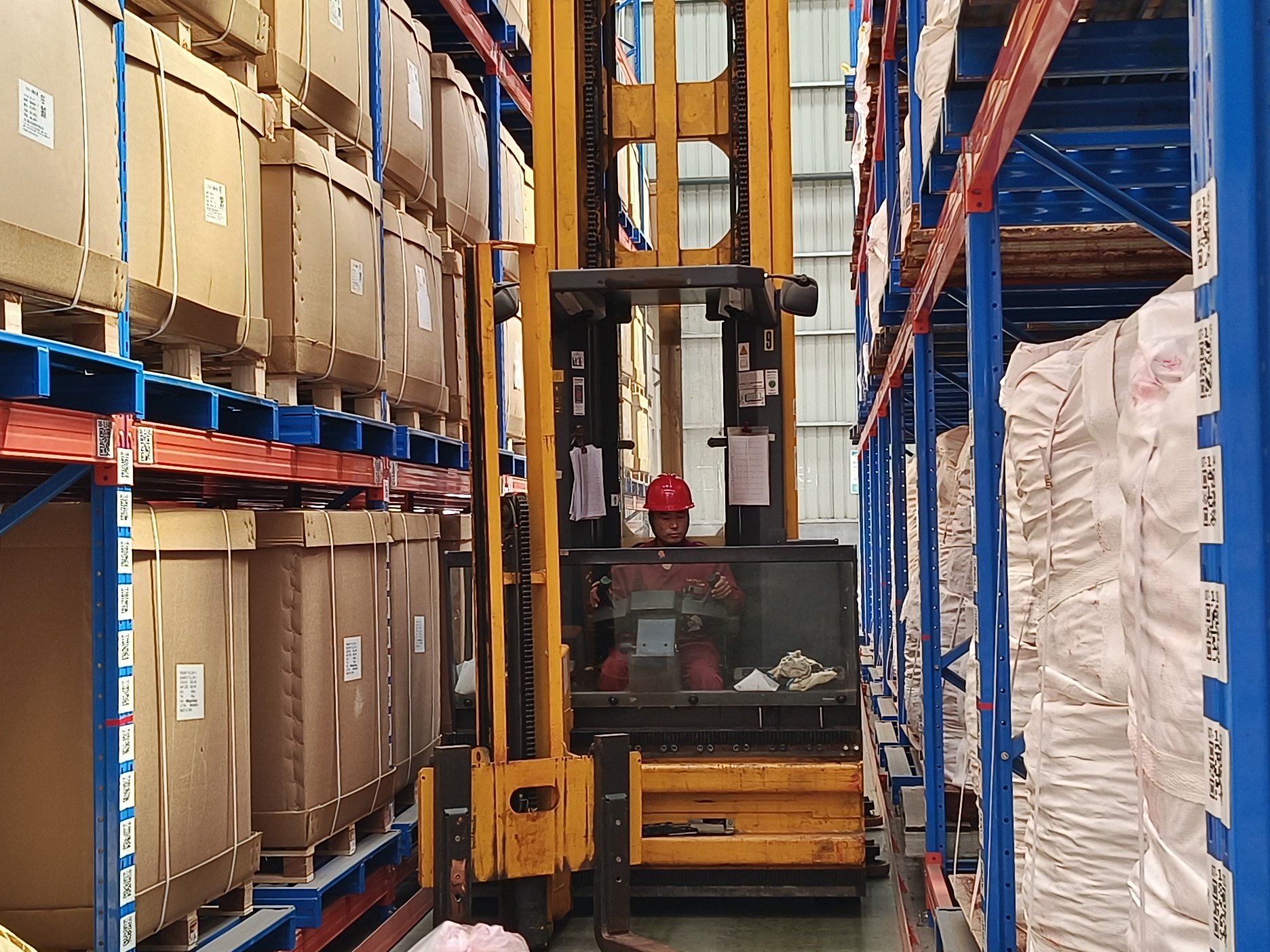

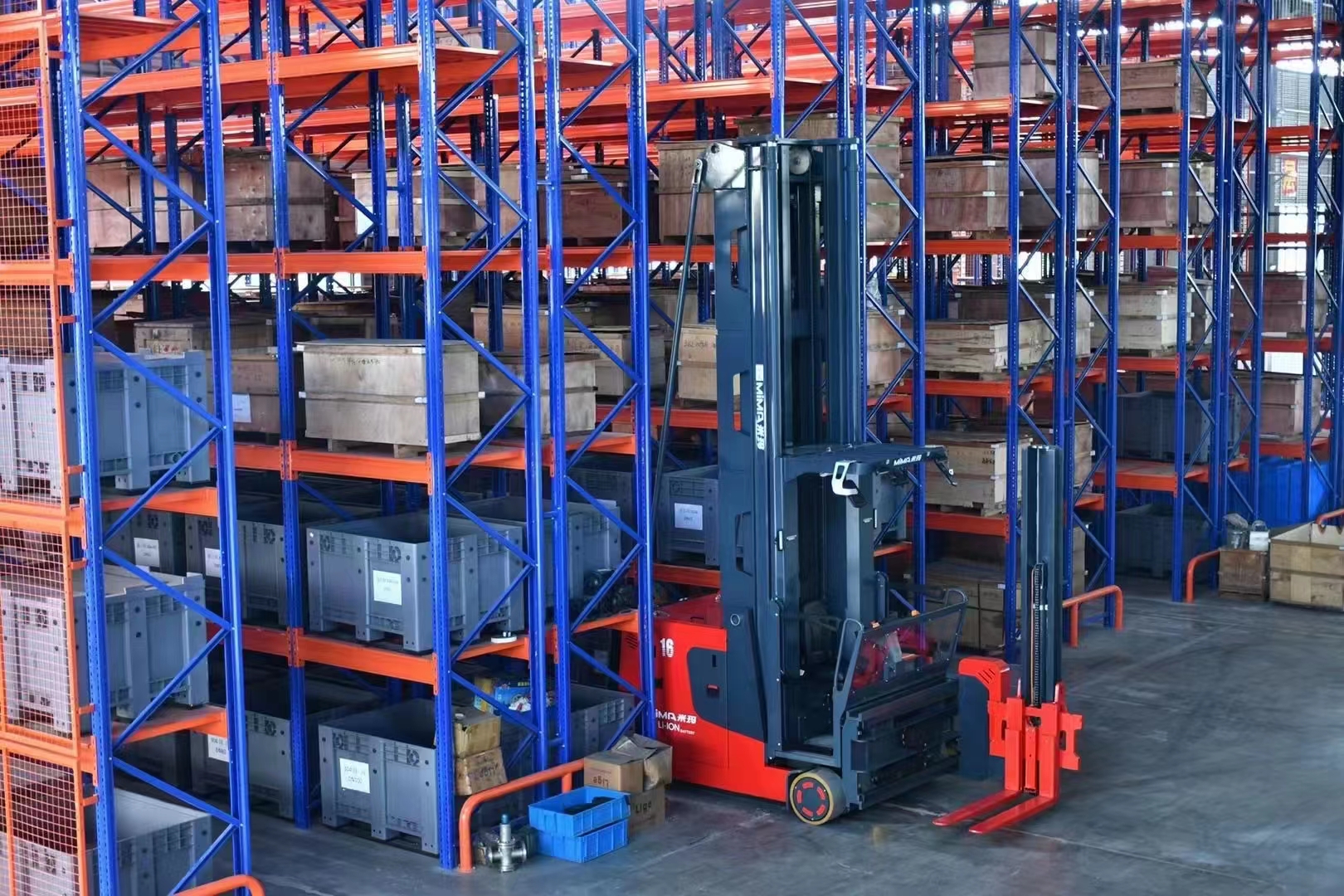

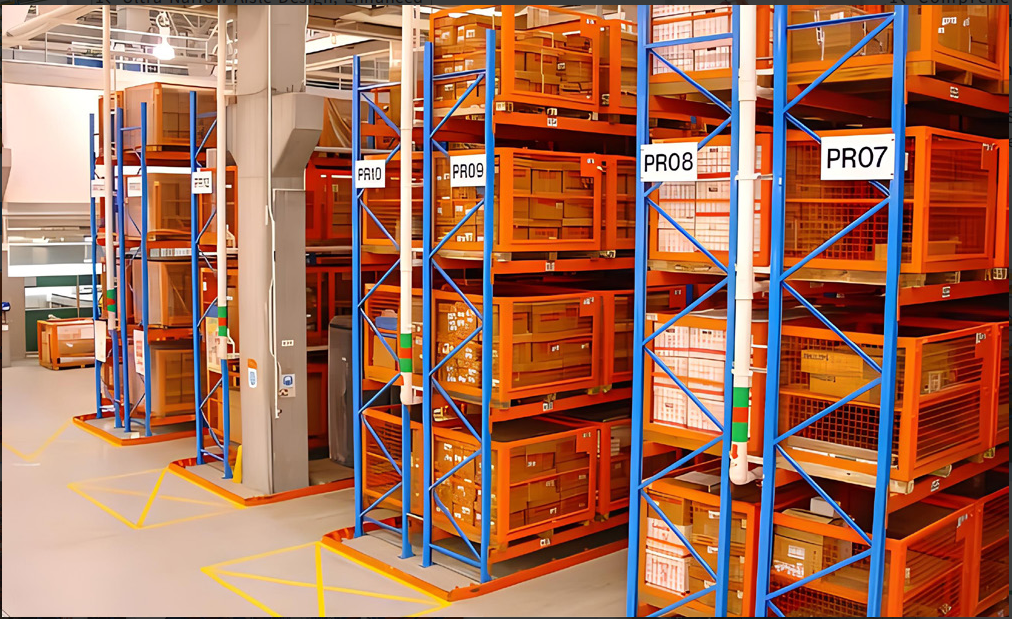

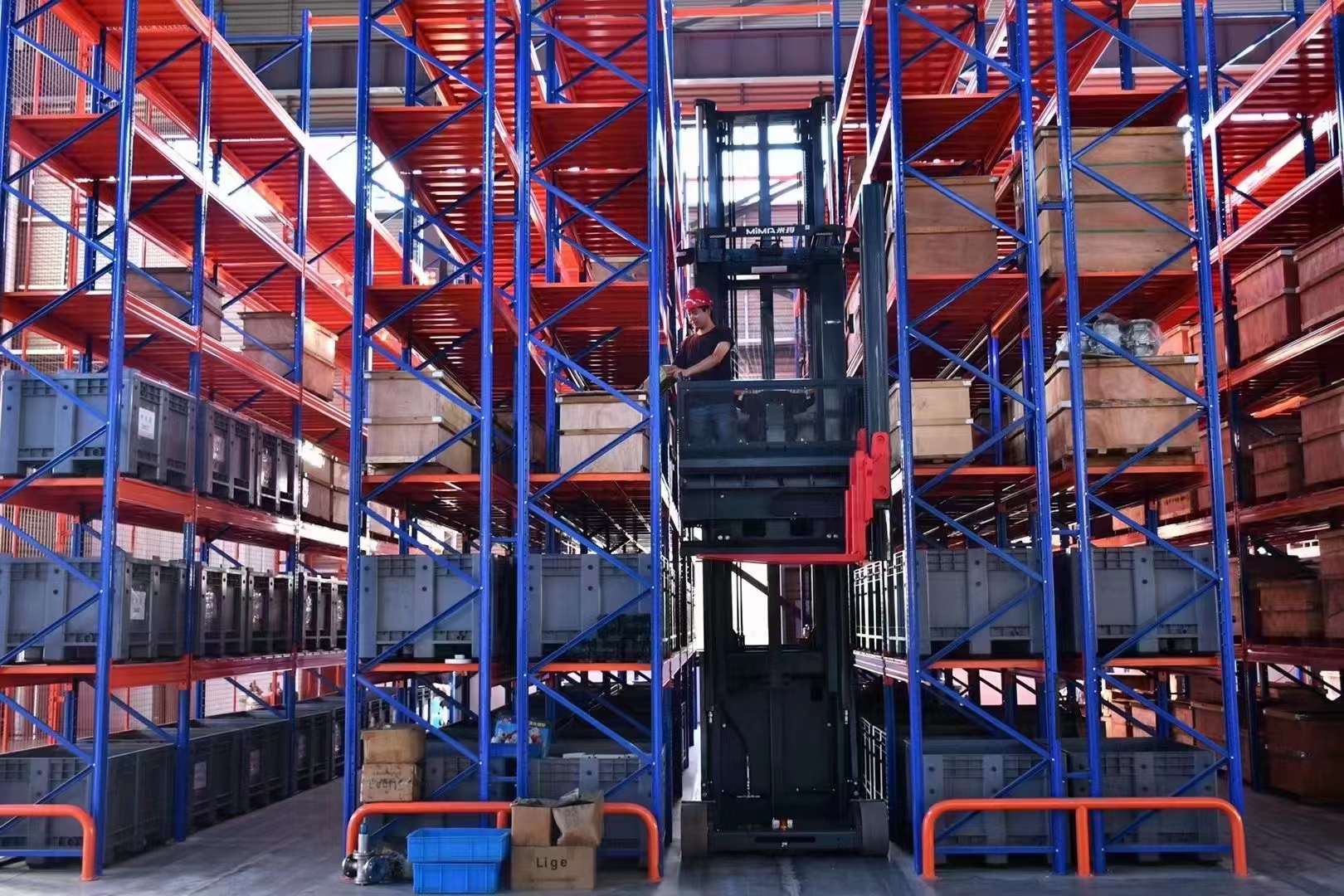

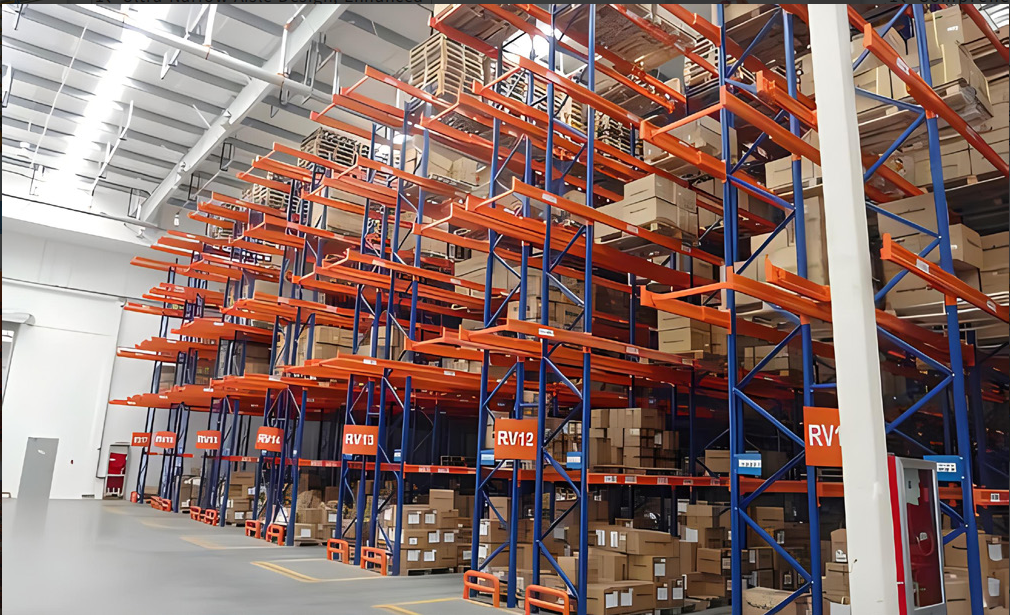

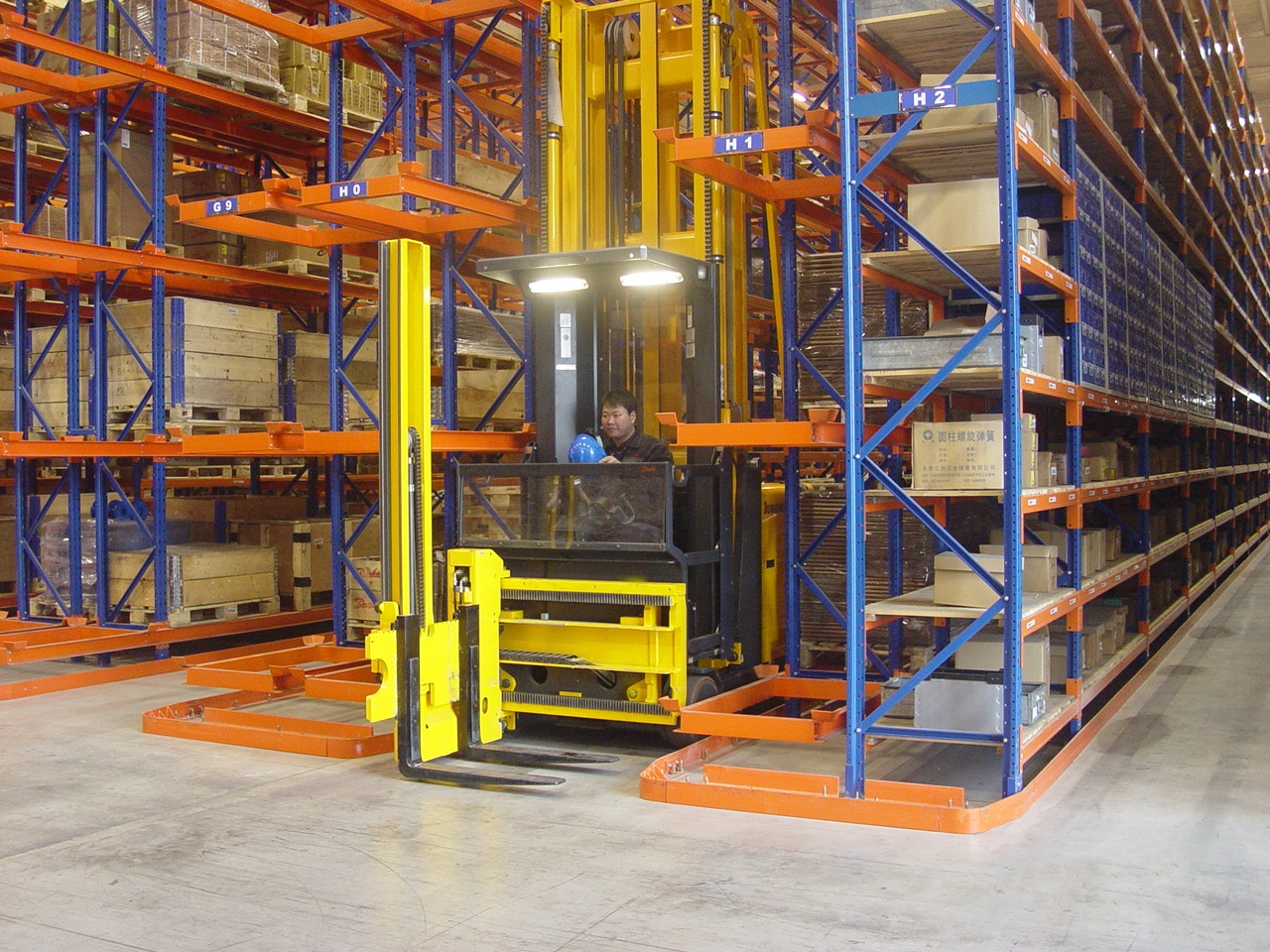

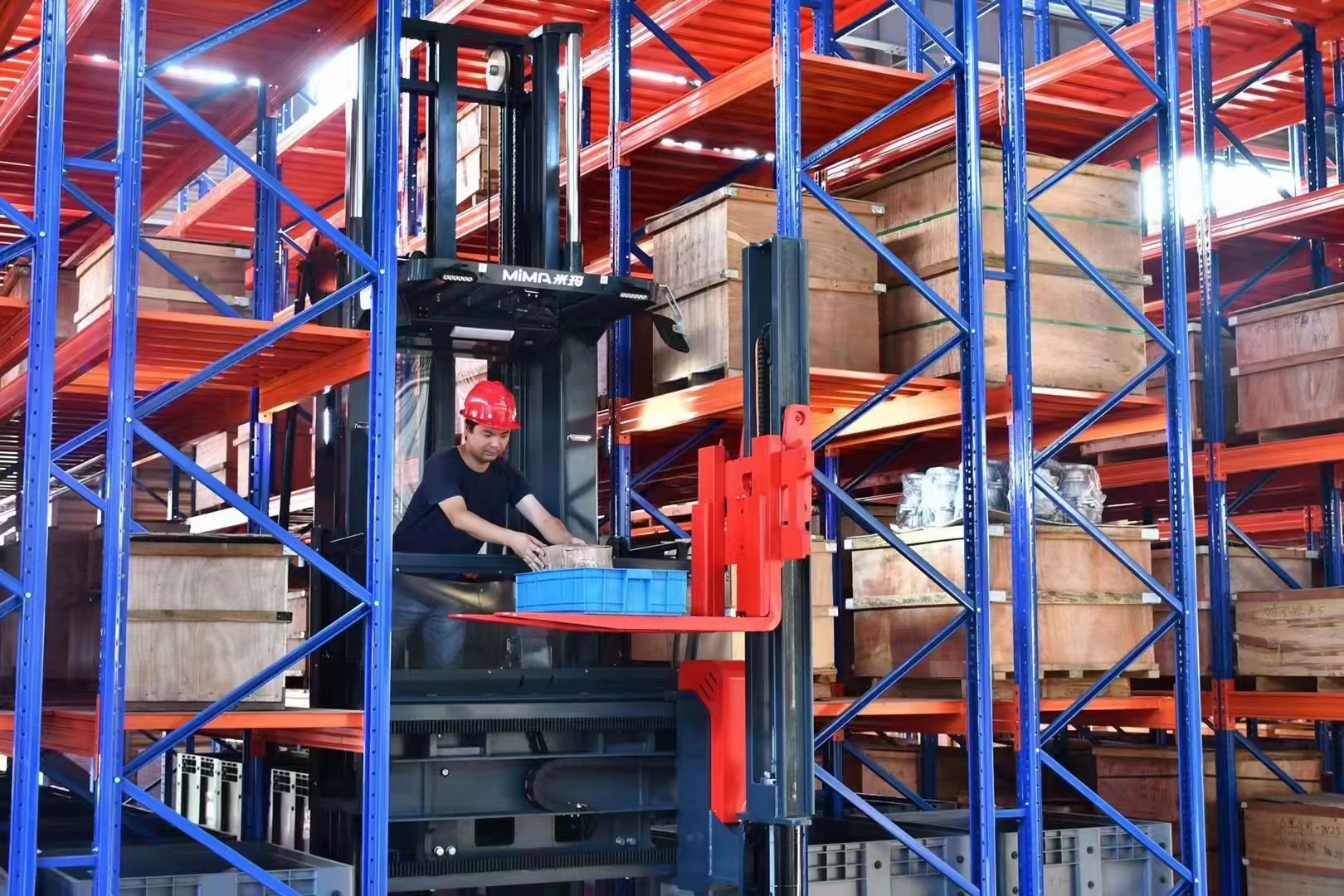

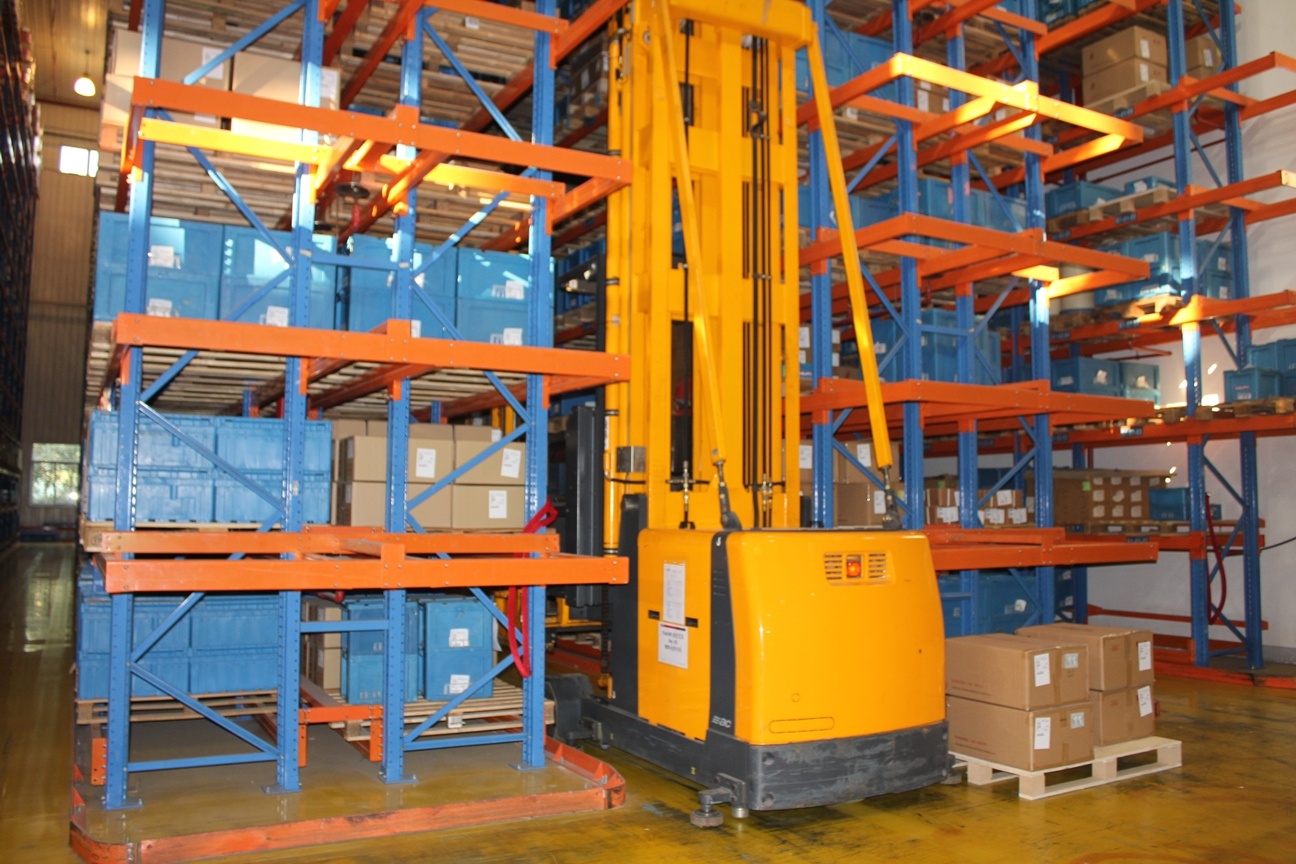

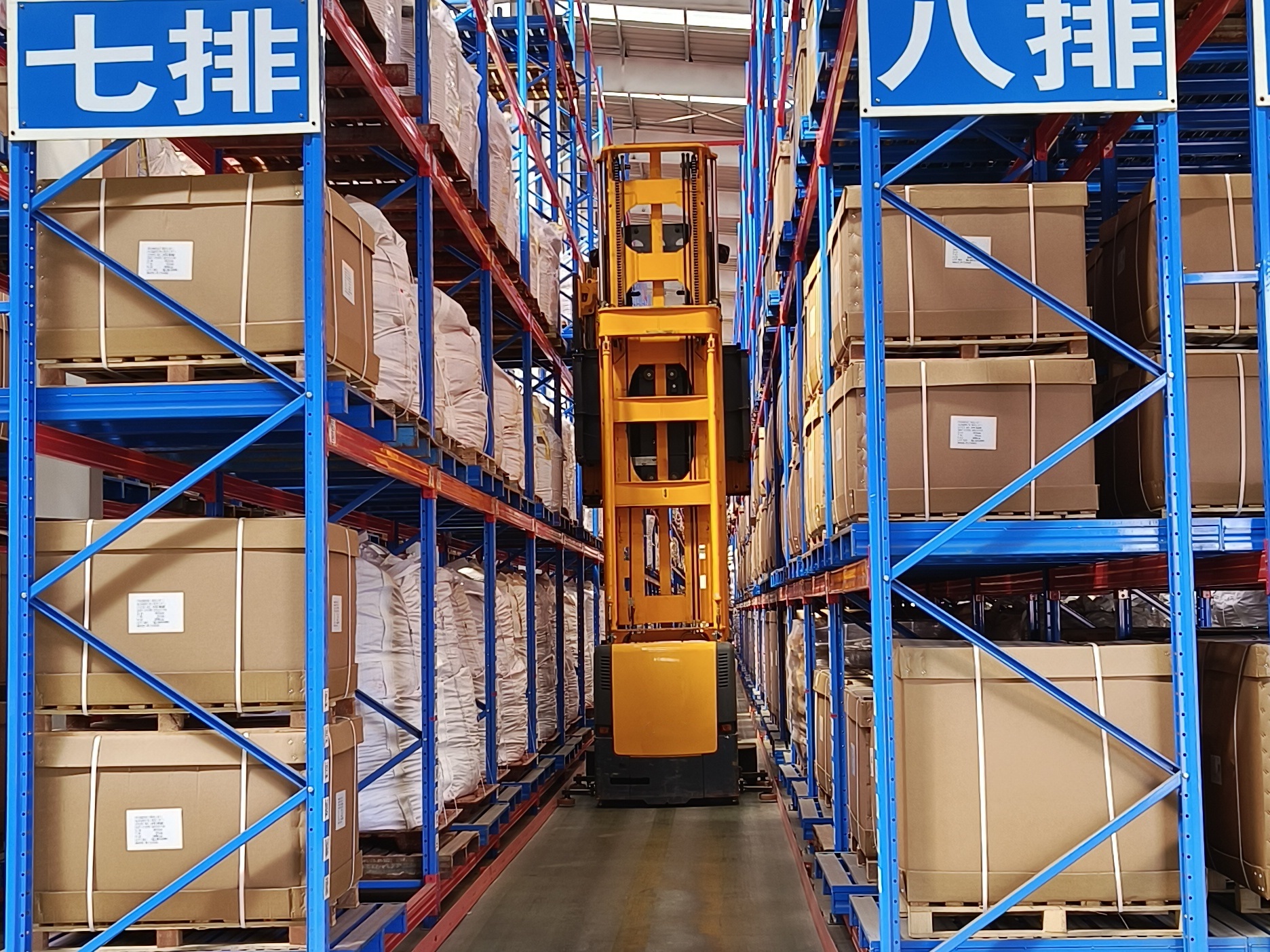

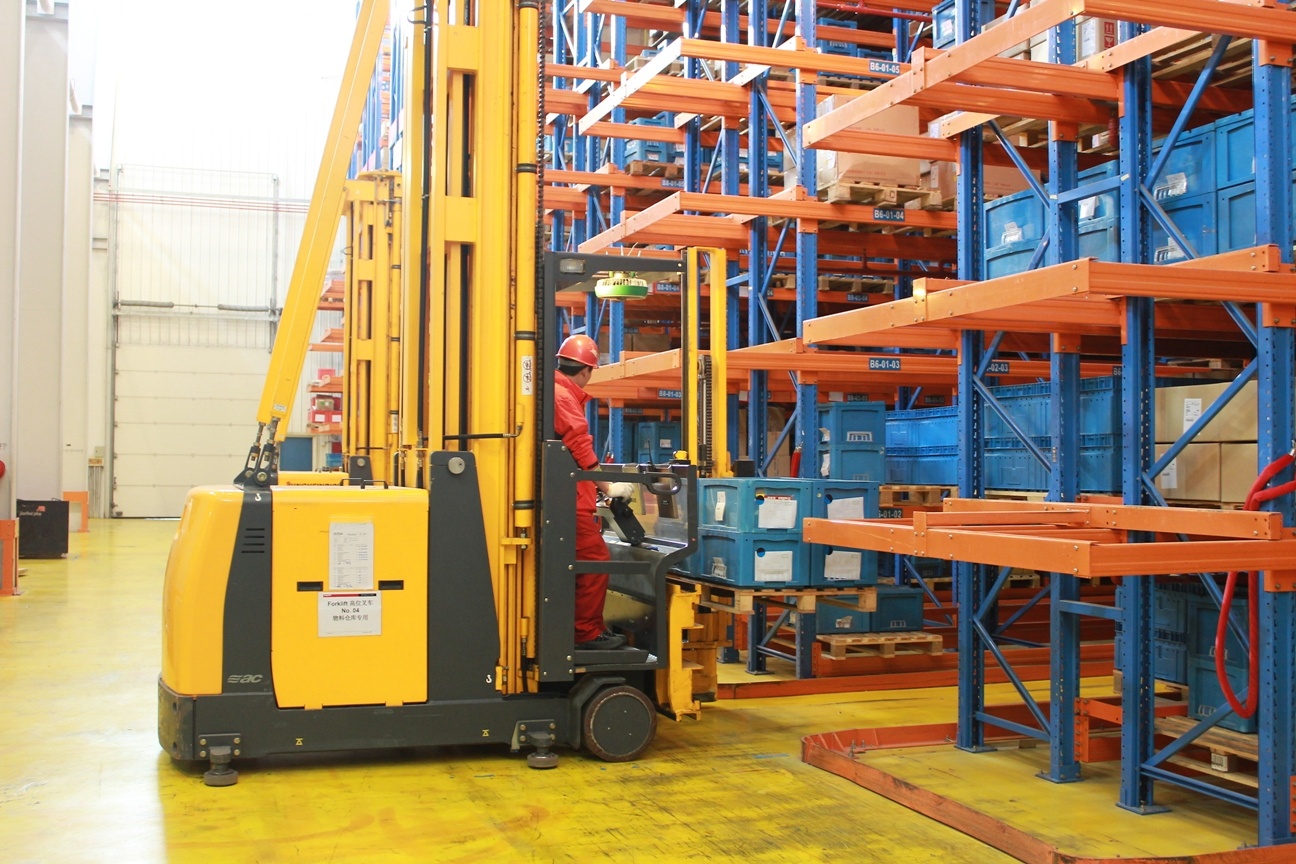

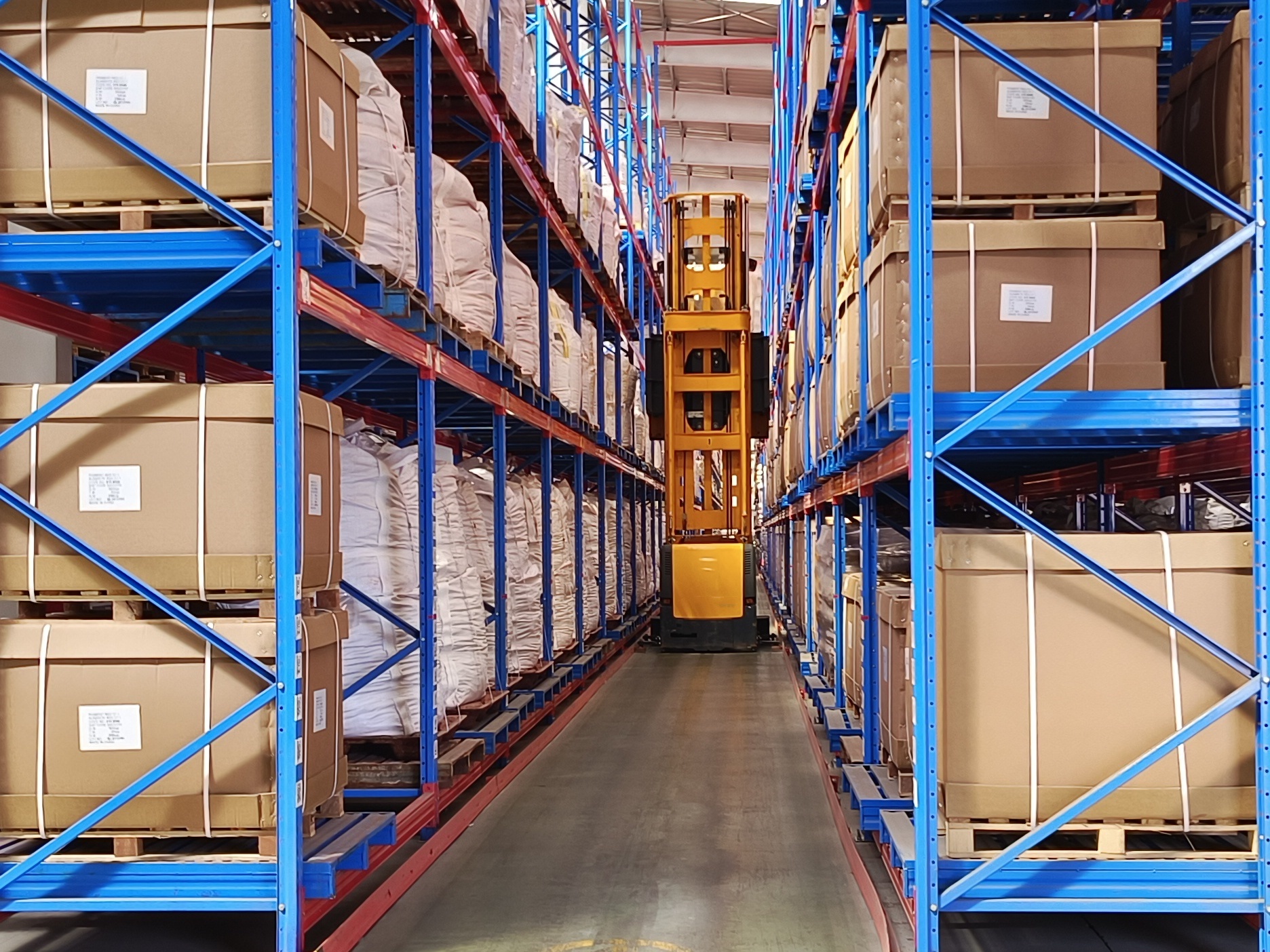

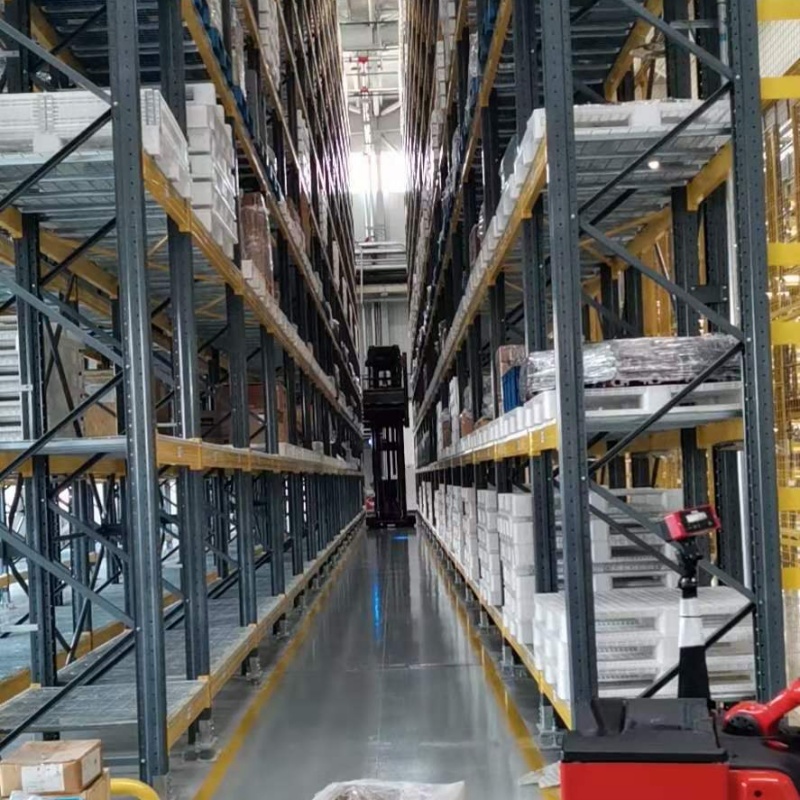

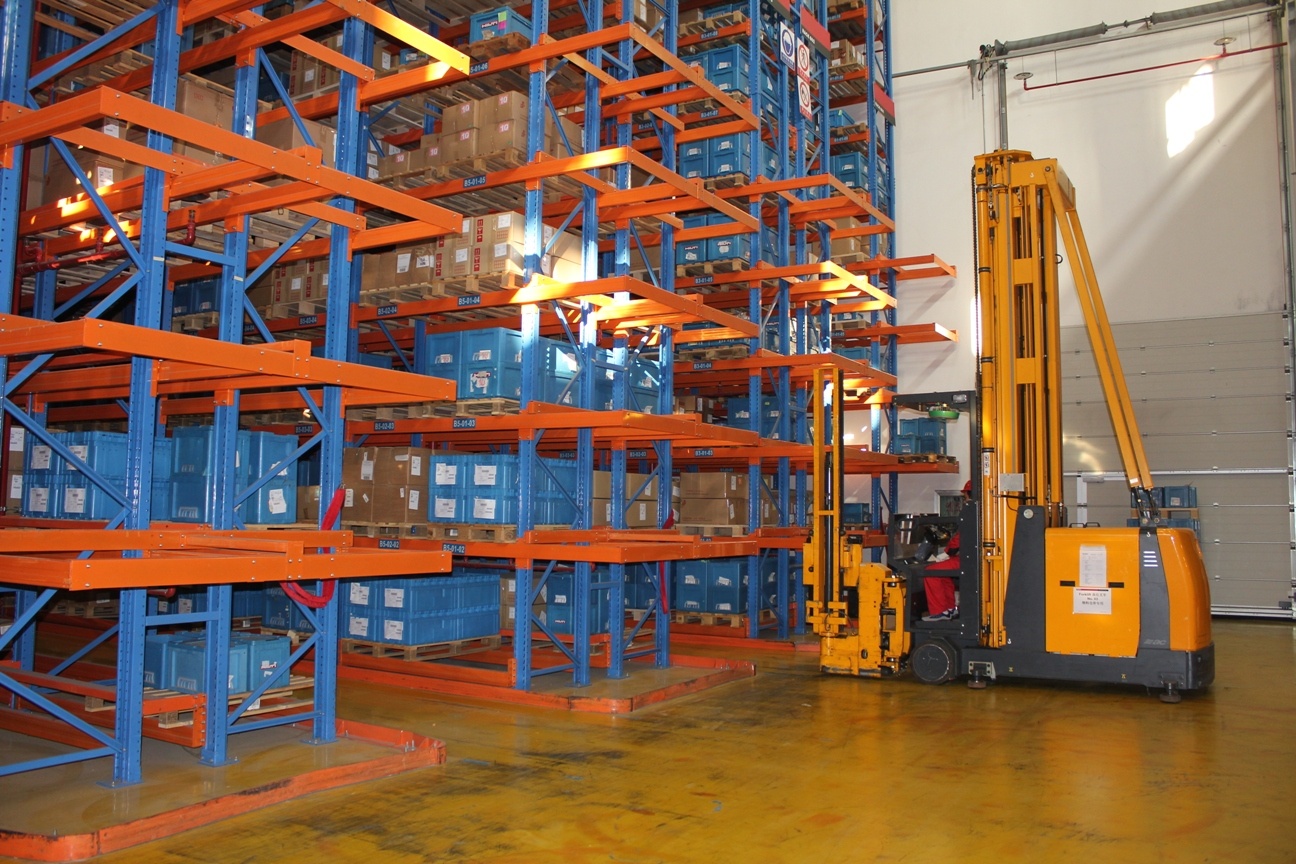

The three-way stacker truck's moving rails are installed on the floor below the narrow aisle racking and are used in conjunction with a three-way forklift. Its aisle width is only 1.6-2.4 meters, much narrower than the 3-4 meters of traditional racking. It can reach heights of 8-15 meters, fully utilizing vertical space and achieving a storage density 30%-50% higher than traditional racking. It also supports a first-in, first-out (FIFO) system. It is suitable for warehouses with floor heights of 8 meters or more, large batch sizes, and moderate turnover rates, such as food, daily chemical, e-commerce, and manufacturing industries.
| Place of Origin | China Shandong |
| Brand Name | FANGDING |
| Type | Multi-Level |
| Material | Q235B Steel |
| Use | Warehouse Rack |
| Guarantee period | Guaranteed |
| Product name | Steel Platform, Mezzanine Floor |
| Usage | Warehouse Storage |
| Height | As per your requests |
| Capacity | 100~1000kgs |
| Width | As per your requests |
| Surface treatment | Powder Coating |
| Upright Column Type | Structural H Steel, Round Tubing, Roll-formed Post |
| Beam Type | Structural H Steel, Interlock Beam |
| Floor Type | Interlock Powder Coated / Grating Galvanized |
| How staffs go upstairs | By stairs |
| Method of handling goods | By hand items, Slide, Cargo lift, fork lift and pallet jack |
| Characteristics | Anti-seismic, Industrial Safety Class |
| Components | Staircase, Handrail, Guardrail, Accessing Gate, Wire Fence |
| Back-up Services | Installation Drawing/ On Site Instruction |
| Design Services | Available |
| Free Sample | Available (Delivery Cost on Buyer) |
| Application | Goods storage |
| Size | Customer Size |
| Packing | Customize |
| Port | Qingdao |
| Certification | ISO9001/CE |
Cargo Fixation: Ropes, straps, frames and other devices secure mezzanine rack components in transport to avoid movement/collision from vibration, sudden stops or turns. Heavier parts (uprights, beams) use multi-layer reinforcement for stability.
Vibration Damping: Rubber pads, foam boards and other shock absorbers are placed at the base and around goods to absorb transit vibration, protecting the rack's surface and structure—critical for preventing coating damage on treated racks.
Rain & Moisture Protection: Transport vehicles use high-quality waterproof tarpaulins to cover goods from rain. Desiccants are added in packaging during transit through humid areas or long trips to keep metal components dry and rust-free.
Recognized as a specialized, innovative, and high-tech enterprise, the company boasts not only strong technical expertise and product development capabilities, but also advanced equipment such as cold-rolling lines for steel sections, automated powder coating lines, and automatic continuous punching lines for strip steel.
Its diverse product portfolio includes various types of racking, including pallet racking, heavy-duty racking, Medium-Duty Racking, asrs racking, drive-through racking, mezzanine racking, cantilever racking, wireless shuttle racking, vna racking, platform racking, flow racking, and long material racking. The company also provides comprehensive after-sales maintenance services. Its annual production capacity exceeds 20,000 tons, with an annual output value of 200 million RMB.
Welcome to visit our company.
Our Factory
Our Reception
1. Provide detailed free CAD drawing & quotation.
2. Revise the solution till suit your perfectly.
3. Resolve your doubt occurred during the communication.
4. Handle steel structure related storage rack from simple design to complex design.
1. Accepted order paid directly to our bank account.
2. Transaction via third party (ALIBABA) is acceptable to protect customer's interest.
3. Change order is negotiable when confirm to us the production is not done.
1. Detailed packing information and list will be provided.
2. Loading pictures and information will be sent on loading day.
3. Provide installation drawing and steps to help your installation.
4. Send professional installation crew to do the entire installation job.
We are a professional manufactory dedicated to high-quality storage rack systems.
Our factory is located in Dezhou City, Shandong Province, China. You can contact our representative to arrange your itinerary and come for a visit directly. We sincerely welcome your visit!
Qingdao port is typically used, or we can arrange shipments based on your specific requirements.
The standard raw material for normal temperature warehousing is carbon steel Q235B. For cold storage (-18°C or lower), we adopt Q345D steel. Other steel grades can also be customized to your application.
No, we have no strict MOQ requirements for most products. However, a 1*20ft container order is generally recommended to optimize freight costs and handling.
Standard export packaging is applied. Components are neatly stacked, secured with packing tape, and covered with protective plastic film. Shelving plates are carefully packed into cartons and reinforced with straps.
