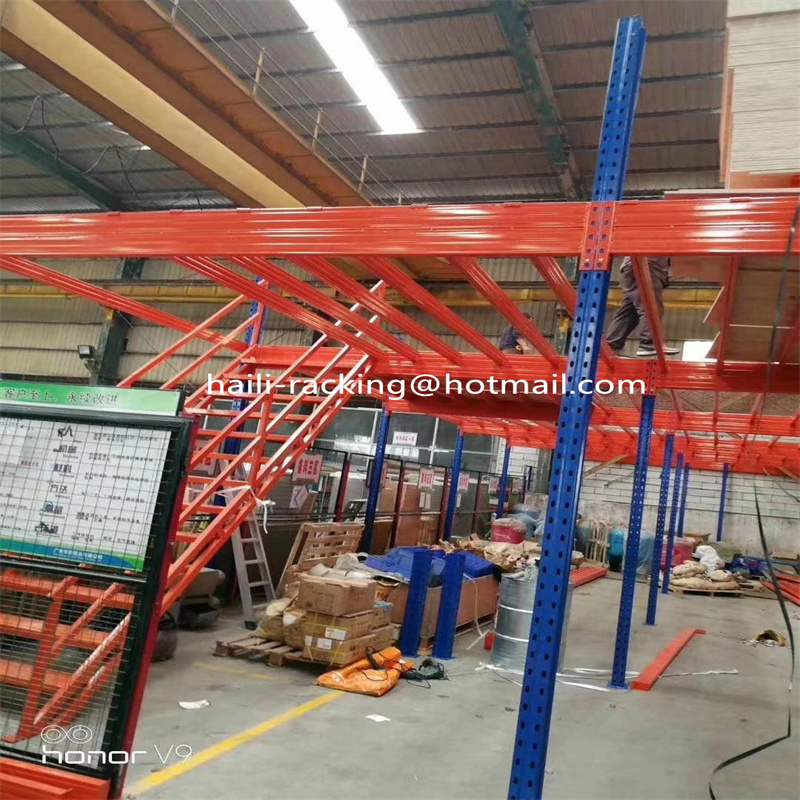

Warehouse Free Standing Modular Mezzanine Floor Kits With Stairway And Elevator can create additional floors of space for a variety of different uses such storage or extra mezzanine office. It is a very quick and cost effective way to create new space without the high expenses and inconvenience of relocation.

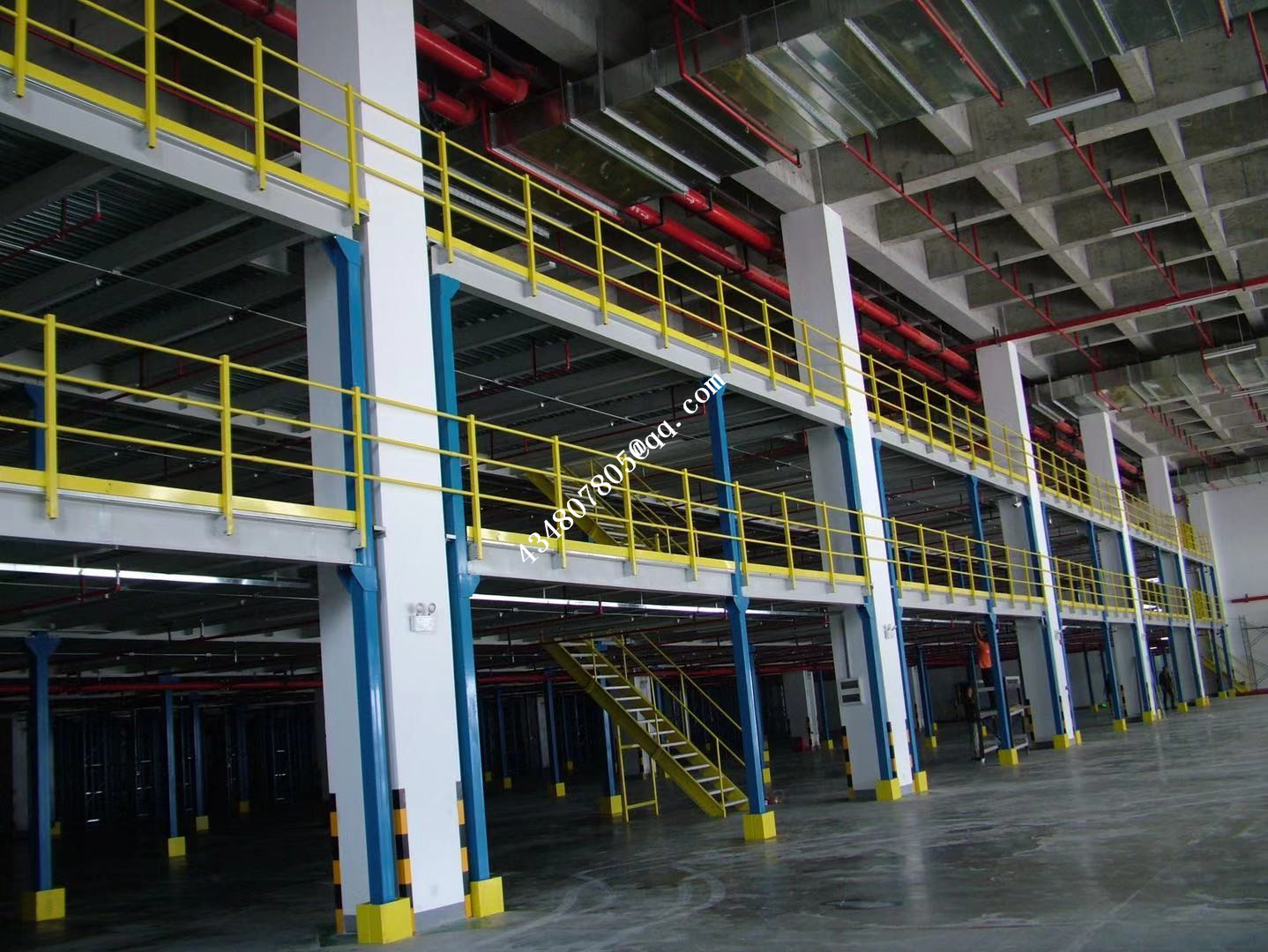

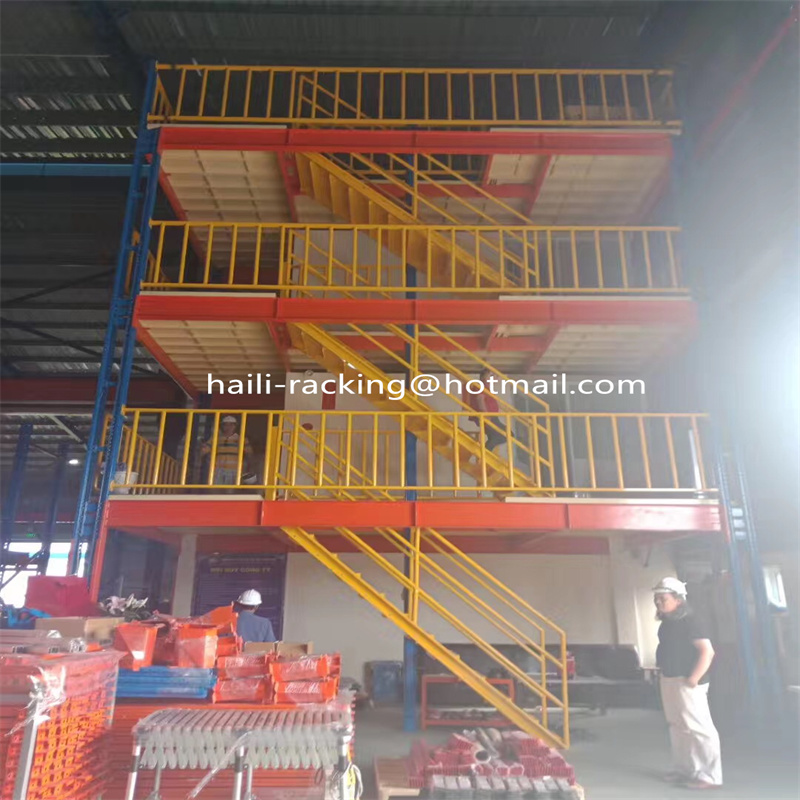

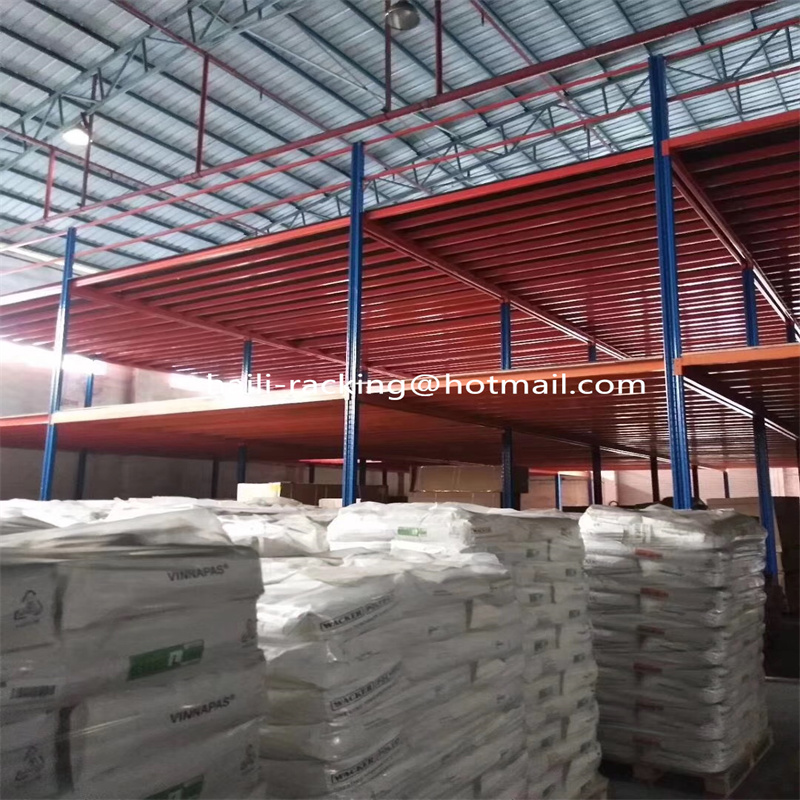

Warehouse Free Standing Modular Mezzanine Floor Kits With Stairway And Elevator can be one-floor or multi-floors according to the requirements from customers. They can be built over existing equipment and work areas, making maximum use of warehouse height.

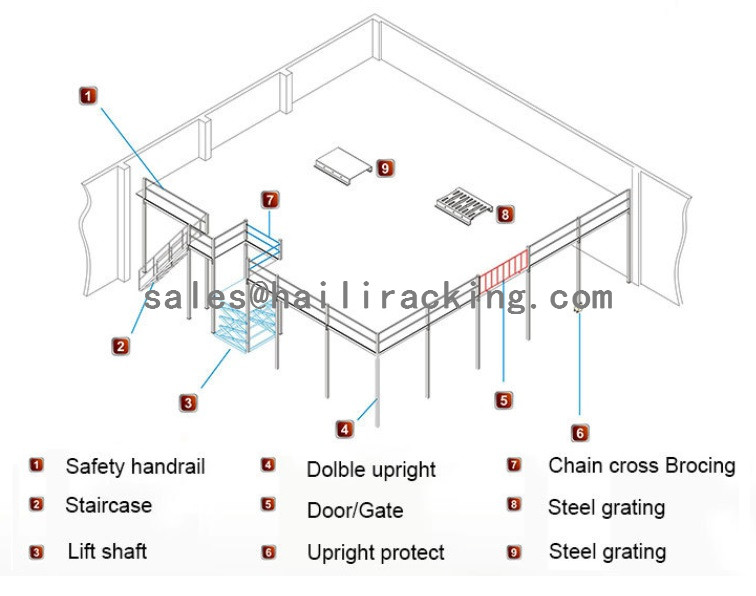

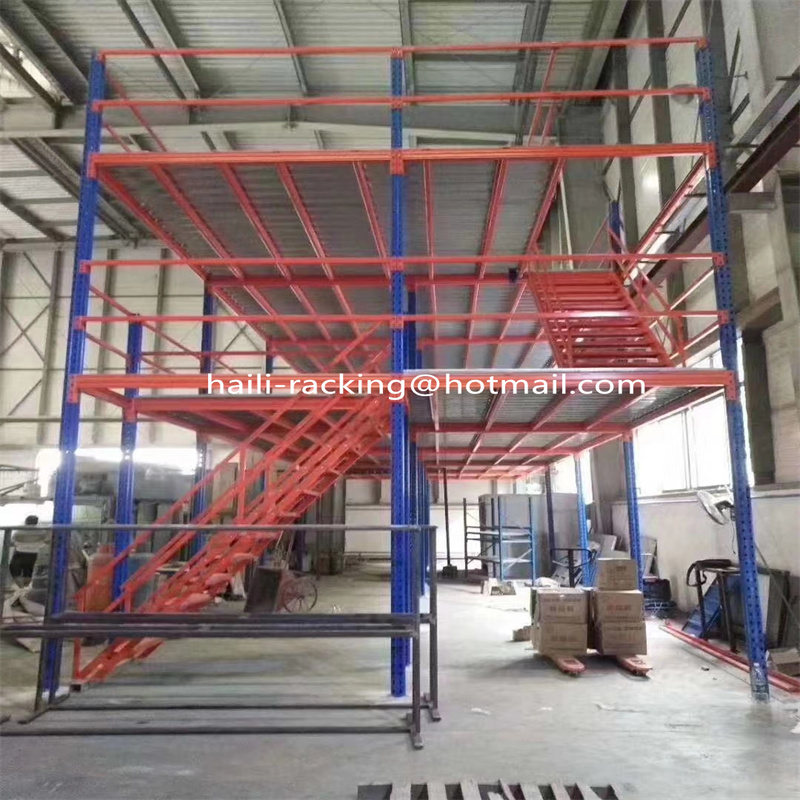

Warehouse Free Standing Modular Mezzanine Floor Kits With Stairway And Elevator is with uprights, main beams, sub-beams, stairs, handrails and floorings. which is totally assembly structure, pre-manufactured thus no cutting and welding are needed. Dismountable and re-usable, the dimensions and locations are easily modified. Double uprights to support the floor decking, more stable.
Stairs, hydraulic lift table and goods lift, slide, conveyer belt, are equipped, combined with forklifts, for moving goods from ground to upper floors.
| Classification: | Warehouse Free Standing Modular Mezzanine Floor Kits With Stairway And Elevator |
| HS Code: | 73089000 |
| Use: | For storage purpose or as mezzanine office |
| Structure: | Can be assembled and dismantled easily |
| Feature: | Create new space |
| Solution: | We provide with free safety design Autocad drawings |
| Loading Capacity: | Up to 1000 kgs per square meter |
| Floors: | 1~5 floors, customized |
| Floor height: | Every 50mm adjustable from bottom to top of uprights |
| Mezzanine Height: | Up to 12000mm |
| Mezzanine Depth: | 2000-100000mm |
| Mezzanine Width: | 2000-100000mm |
| Beam Length: | Up to 4000mm |
| Welding: | Good welding by our skilled workers |
| Corrosion protection surface treatment: | Lead free epoxy electrostatic powder coating |
| Colors: | Blue, safety orange and computer grey or customized |
| Raw Steel Code: | Q235B High Grade Hot Rolled Steel |
| Material thickness: | 1.5-6.0mm |

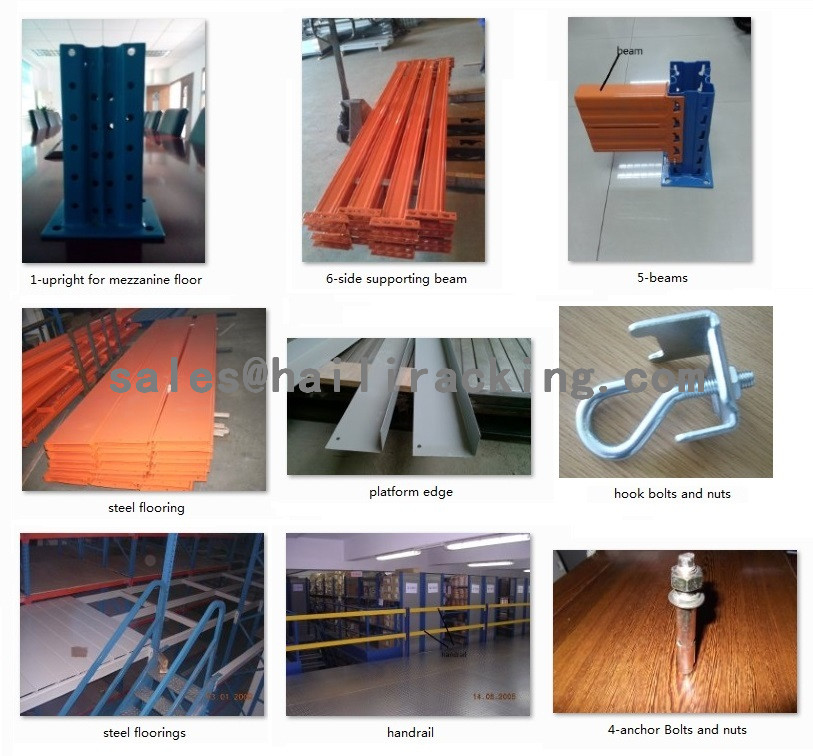

| Main Parts: | Double upright column, beams, steel floorings or wood boards, loading gate, loading platform, stairs, handrails, base plates, bolts and nuts, etc. |
| Upright frames: | Omega Section 55*90mm/65*90mm/80*126mm |
| Beams: | 80*50, 90*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50mm |
| Flooring types: | steel flooring or stamped steel flooring, perforated steel flooring, plywood, etc. |
| Free accessories: | Horizontal & diagonal bracings, base plates, safety locking pins, bolts & nuts and all necessary components. |
| Packing: | Knockdown packing with air bubble film package, Neutral package or according to customer's requirements |
| Loading port: | Shenzhen, China |
| Lead time: | 20 working days |
| Installation instructions: | We can send you installation instructions before shipment. |
| Warranty time: | Warranty: 3 years guarantee from the delivery date |

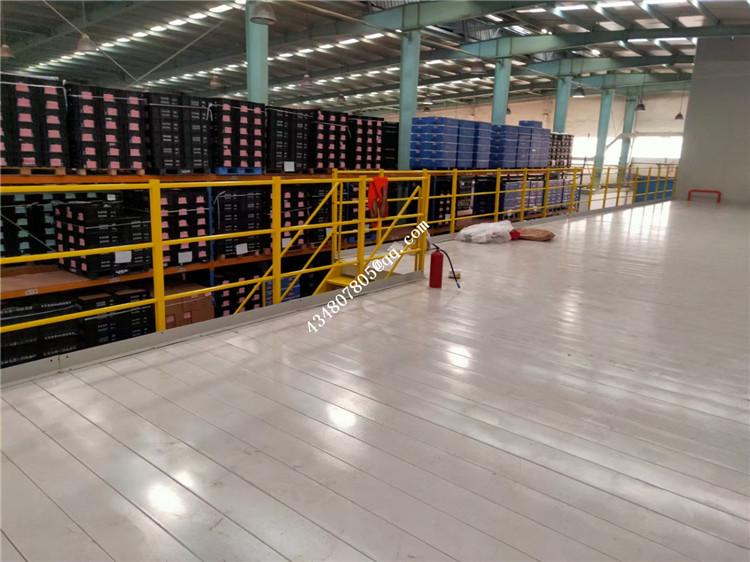

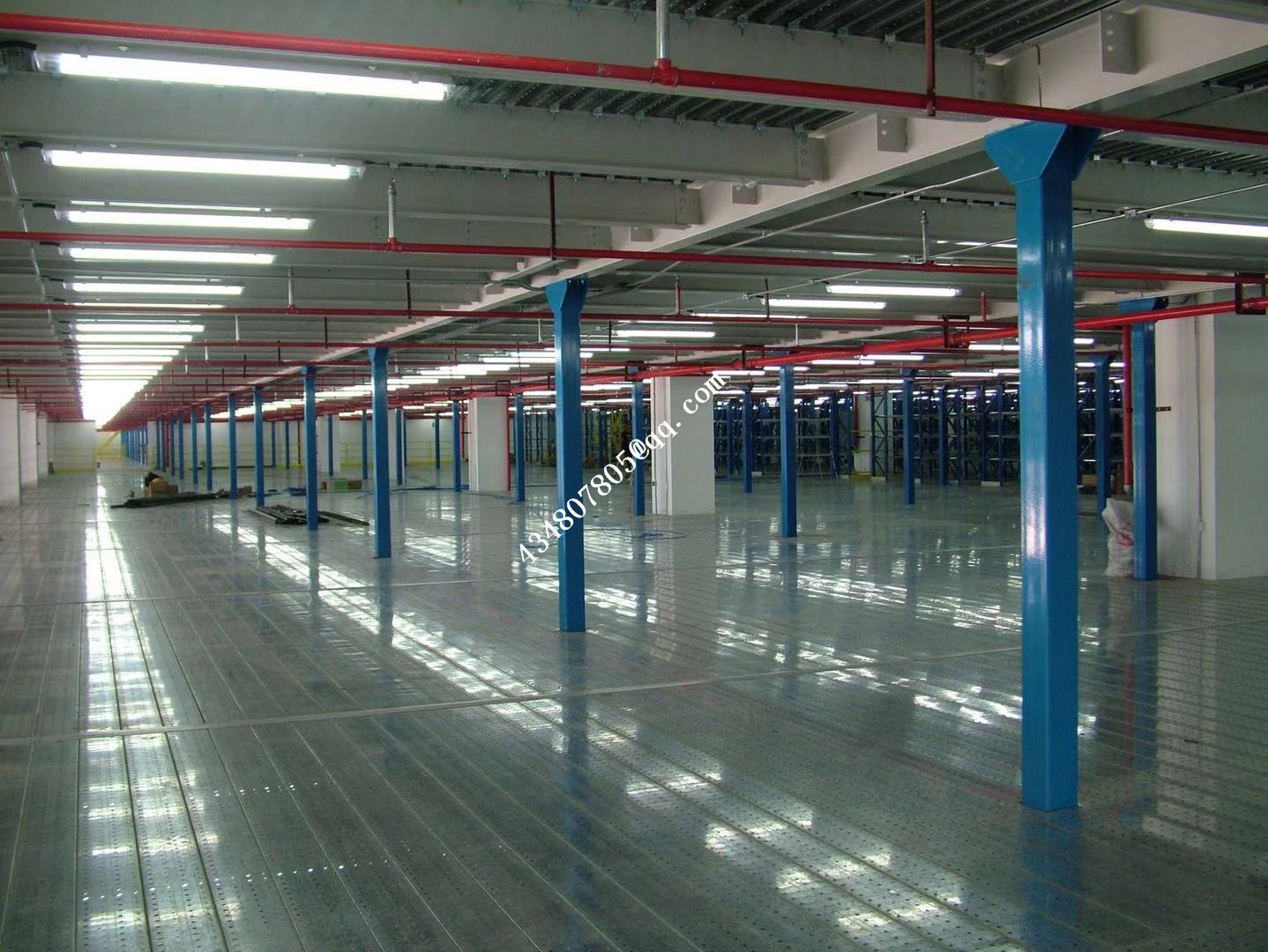

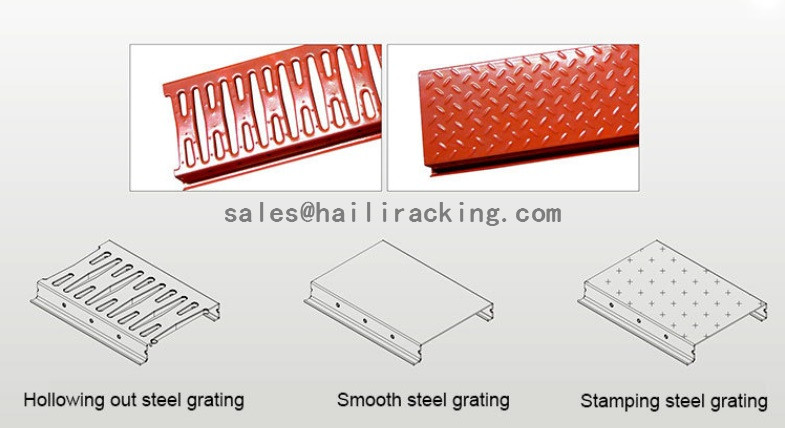

The floorings can be steel flooring, stamped steel flooring, perforated steel flooring, or plywood, etc.

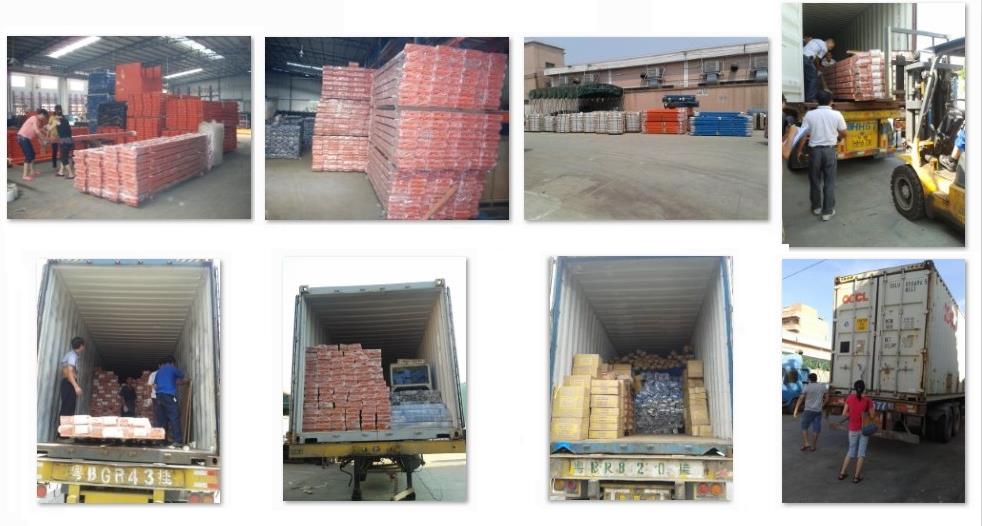

Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.
Shenzhen Port of China: (or Guangzhou Port of China)
Smooth surface mezzanine floor platform racking system for industrial storage
| Length(mm) | Depth(mm) | Height(mm) | Loading Capacity(kg/layer) | Number of Layers |
|---|---|---|---|---|
| ? | ? | ? | ? | ? |
| If you are not very sure of above info, please juet let us know your storage needs. | ||||
