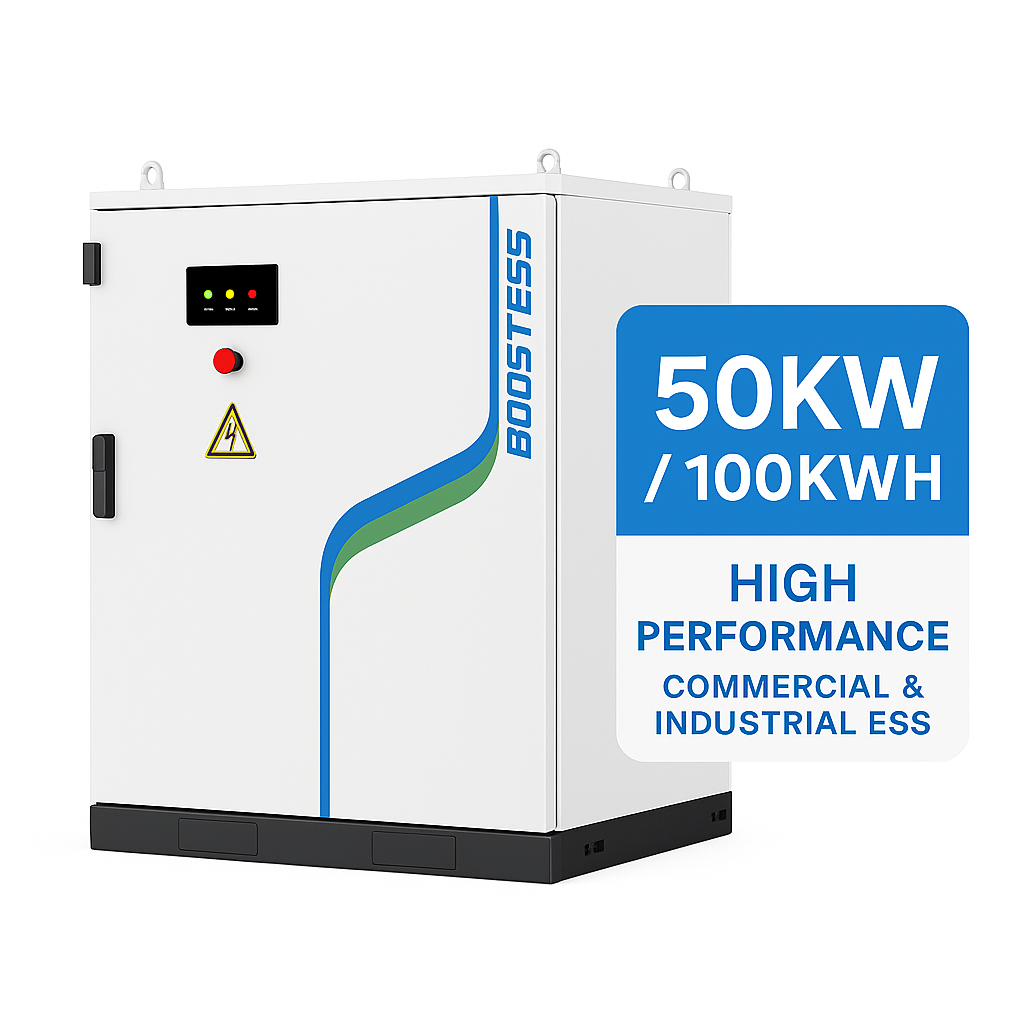

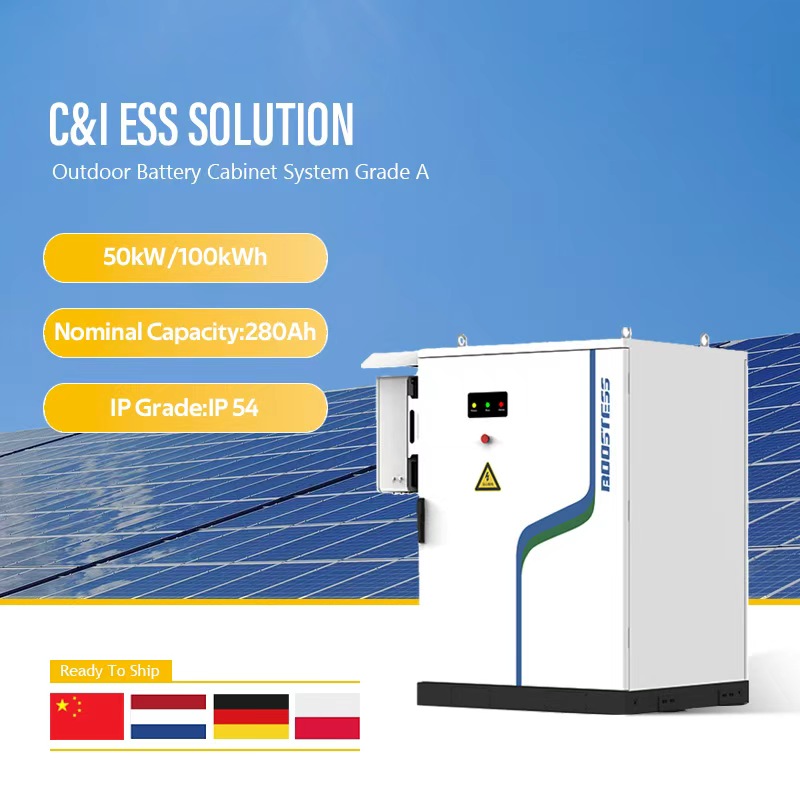

Product Parameters

DC Parameters
Battery Type	LFP	Operating Voltage Range	280V ~ 408.8V
Combination Mode	1P112S	Charge/Discharge Current	100A / 100A
Rated Capacity	280Ah	Cooling Mode	Air Cooling
Rated Energy	100kWh	Cycle Number	6000
Rated Voltage	358.4V	Fire Protection System	Aerosol Extinguishing
Rated Power	50kW	Detector Type	Temperature / Smoke Sensor / Water Leak
PV Parameters
Maximum Input Power	75kW
Maximum DC Input Voltage	1000V
MPPT Operating Voltage Range	200-850V
Maximum Input Current	30A × 4
Rated Output Power	50kW
Maximum Conversion Efficiency	98.8%
AC Parameters
Rated Output Power	50kW
Rated Voltage	3L/N/PE; 220/380V; 230/400V; 240/415V
Grid Frequency	50/60Hz
Maximum Output Current	83A
Power Factor	0.8 Lead ... 0.8 Lag
System Parameters
Operating Environment	-20°C ~ 50°C (Power derating 45°C+)

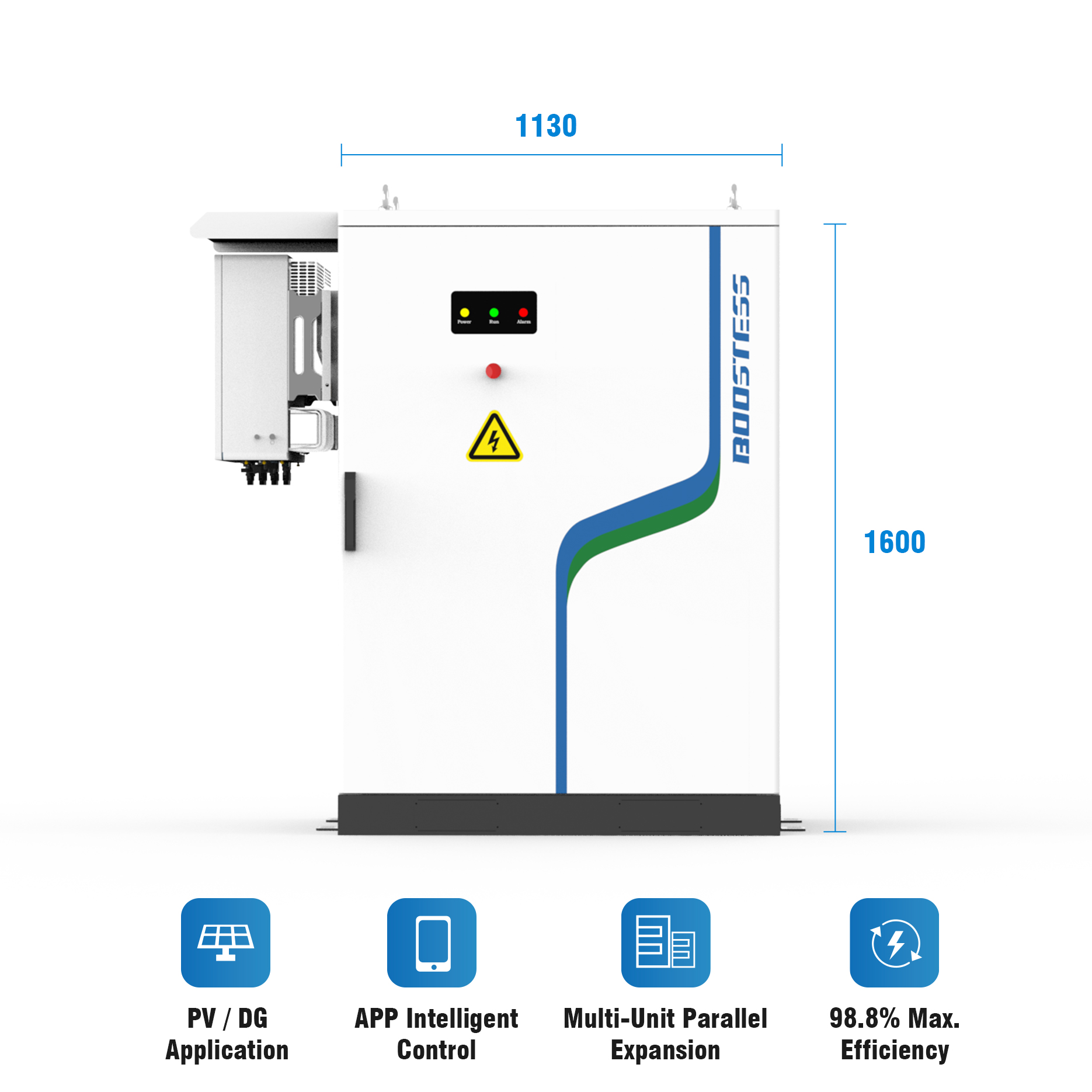

Size	113010001600mm
Weight	About 1.4t
Class Of Protection	IP54
Allowable Relative Humidity	0 - 95%
Allowable Altitude	≤ 2000m (Power derating 2000m+)
Certification Standard	IEC62619, EN62477-1, IEC 63056

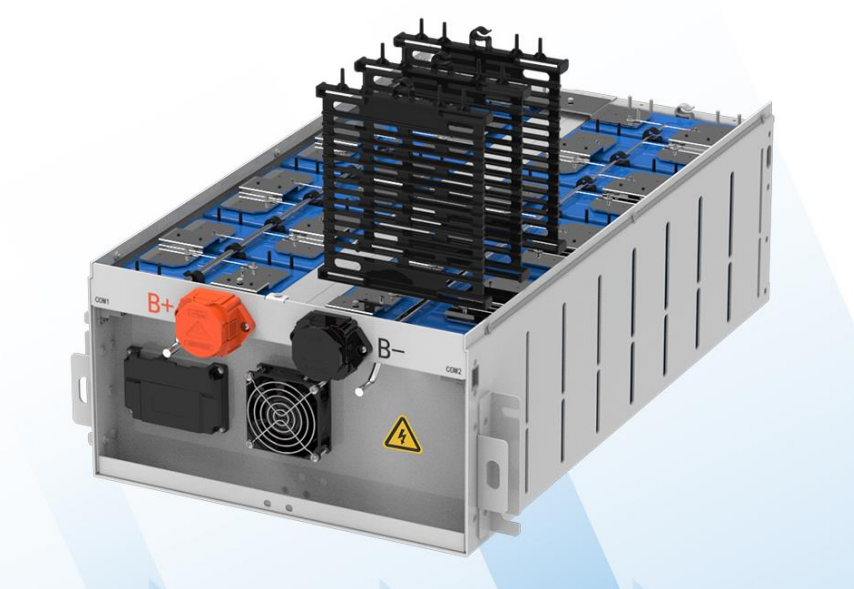

Eight Product Iterations Completed

Our energy storage modules are continuously developed and optimized:

Kanda curved design, air duct turbine design, better heat dissipation per unit volume of excess air volume;
Single cell air duct design, the overall heat dissipation effect is better, temperature range control < 5°C;
Design the overall enhance insulation performance, and heat dissipation effect;
The new thermal simulation condition makes the cell temperature consistency better;
The one-piece extrusion and single-cell expansion coefficient can reach 40,000 Newtons;
CTP no module design, reduce the end plate, steel strip, span copper row, reduce the cost by 30%, group labor efficiency increased by 100%;
External quick-plug design makes BMS+fan maintenance simple and greatly reduces maintenance costs;

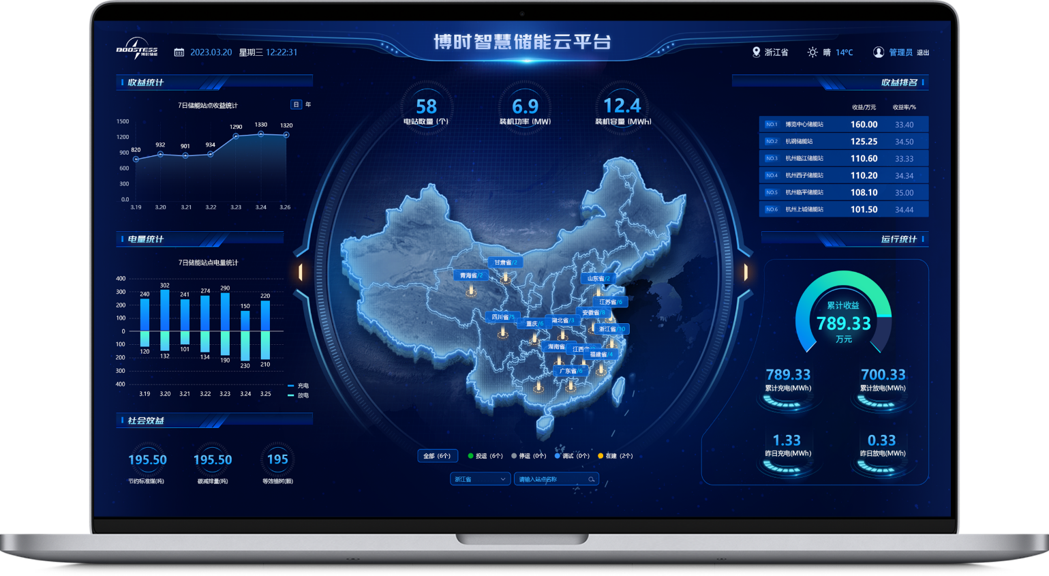

BOOSTESS Cloud Energy Storage Platform

End-to-end Digital Energy Management

Cloud Remote Operation and Maintenance:
The system monitors local device data and evaluates status to dynamically allocate output power to each energy storage device, coordinate power between multiple devices, optimize operating modes, and ensure the highest system efficiency and maximum benefits.

Real-time Monitoring Security

7X24 hours cloud real-time monitoring, analyze the consistency and safety of the battery pack, predict the algorithm in advance, potential risks, real-time warning, ensure the safety of the battery and equipment, and quickly send and repair orders in case of system failure.

Improve Economic Benefits

Through the system, check the equipment operation status, peak and valley power, load power and energy storage revenue in real time. Realize the remote control of equipment and online update of the system, optimize the operation strategy of equipment, provide peak load shifting, demand control, emergency control, load tracking and other strategies, and improve the overall economic benefits.

Visual UI Interface

System information is clear at a glance, the operation is convenient and fast, the operation, virtual scene dynamic display, different sites, the location is more clear, equipment monitoring information, site information graphical control.

Based on technology accumulation, the system capacity and performance index are greatly improved

New type of battery management system Testing and development

Customize various system specifications according to actual application scenario requirements

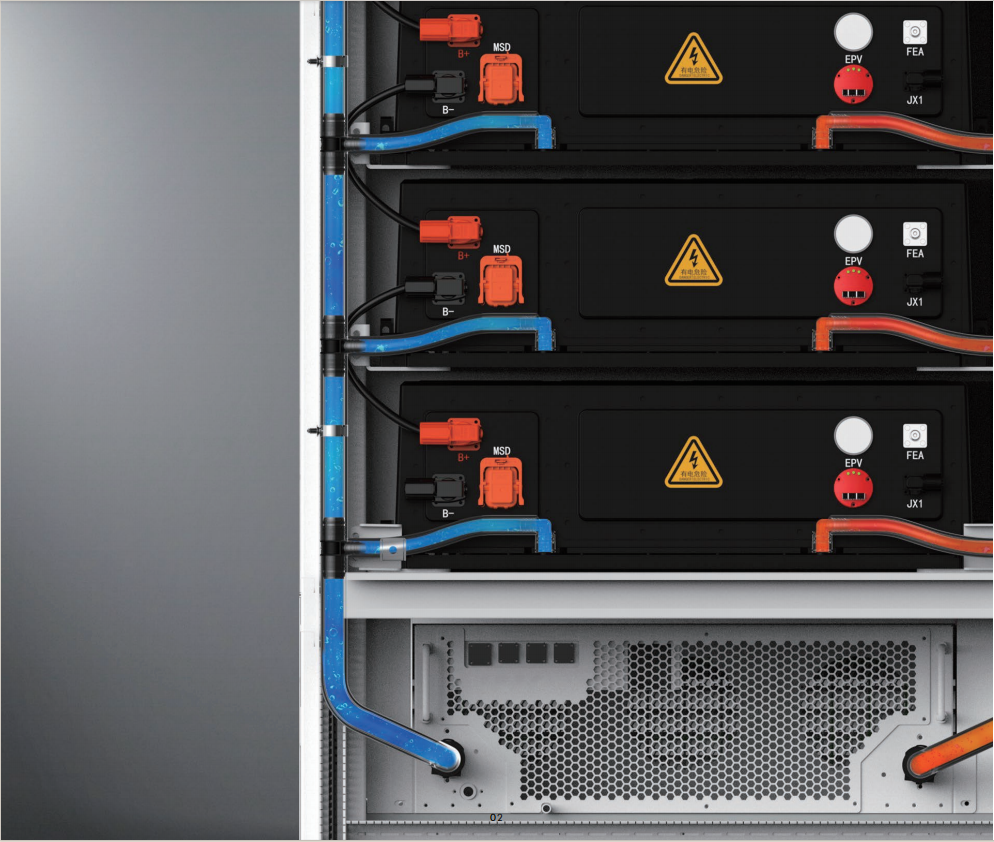

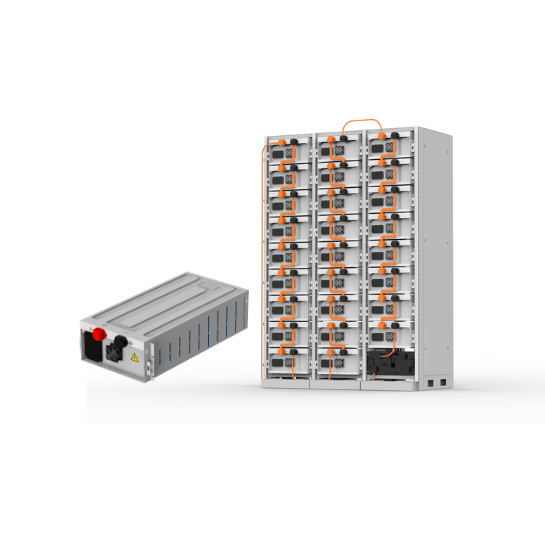

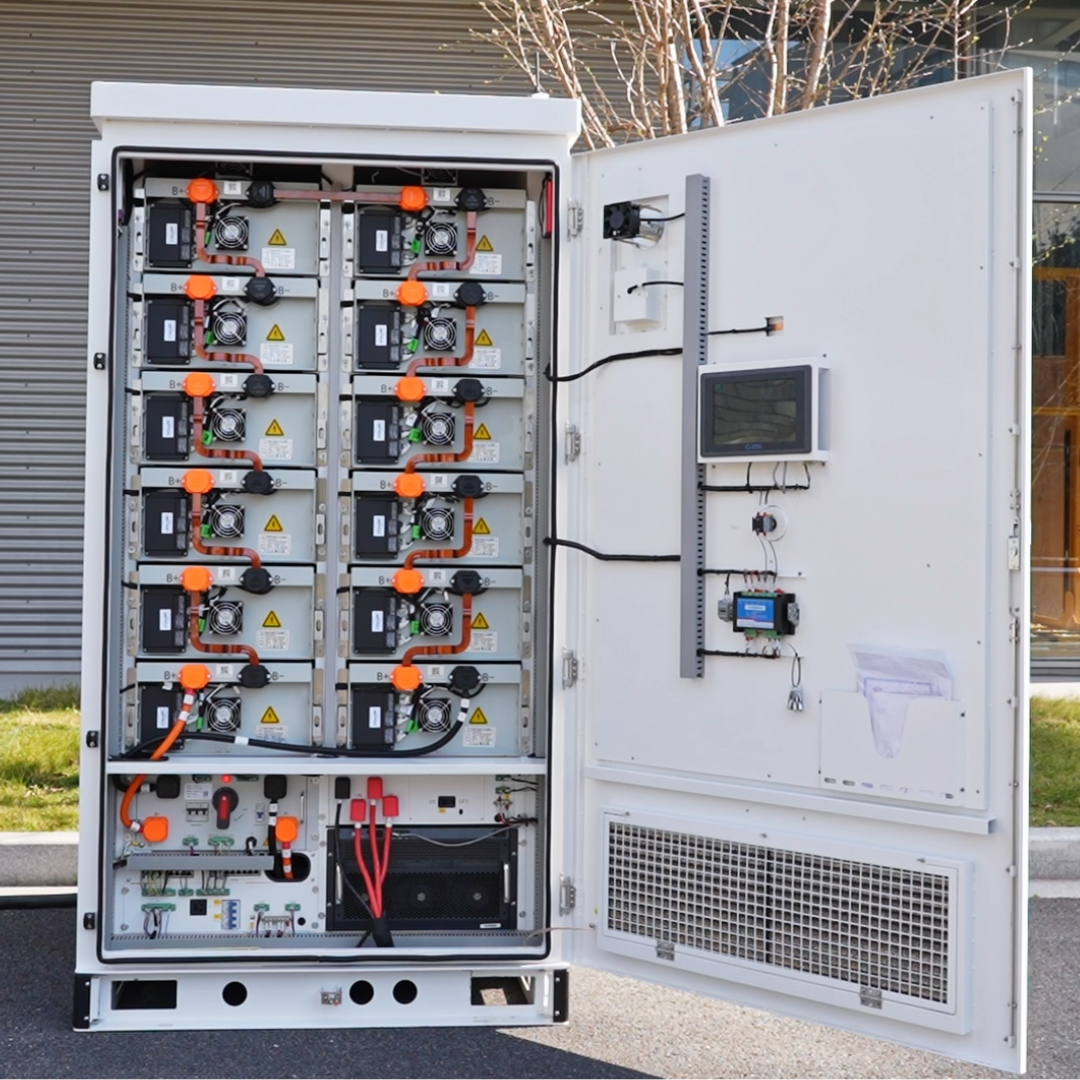

With BMS, Module To System Integration Design And Development Capabilities

★

Our Advantages

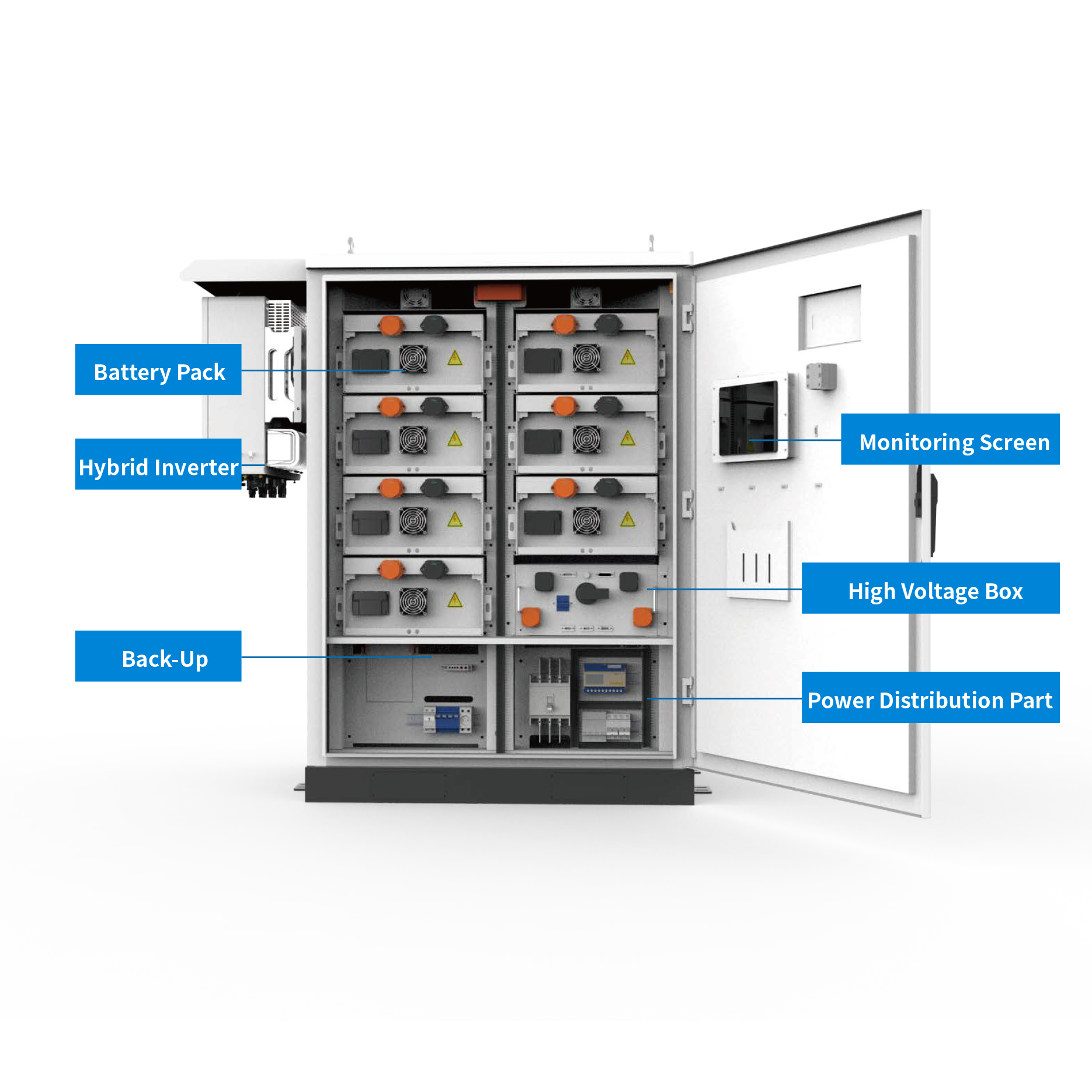

1. All-in-One Design

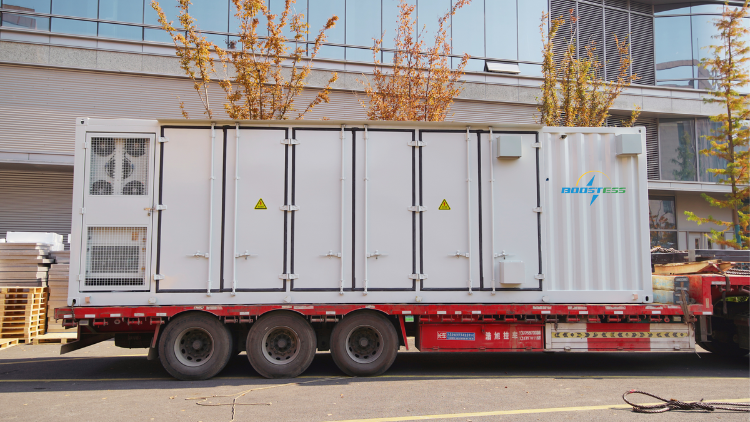

Pre-installed containerized systems (battery + PV input) reduce installation/commissioning time and costs.
Plug-and-play deployment for rapid setup.

2. High Efficiency & Reliability

AI-optimized air-cooling maintains full power at 45°C (IP54 rated for dust/moisture).
Round-trip efficiency (RTE) 3% higher than competitors.
LFP (LiFePO₄) batteries ensure safety and long cycle life.

3. Scalability & Flexibility

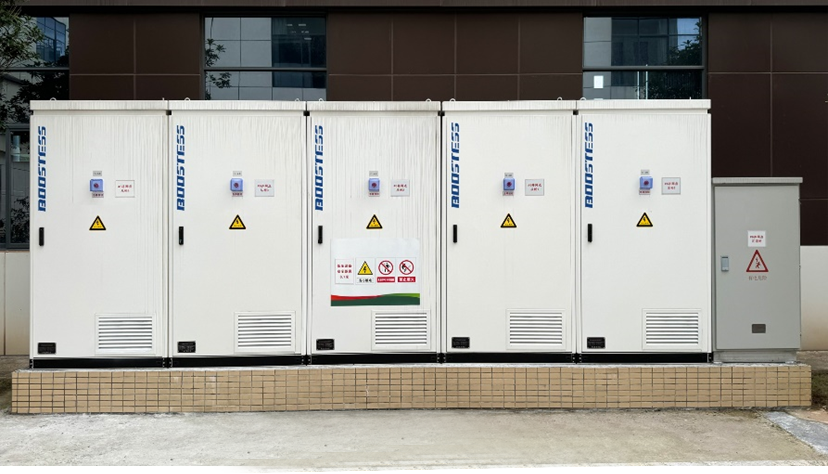

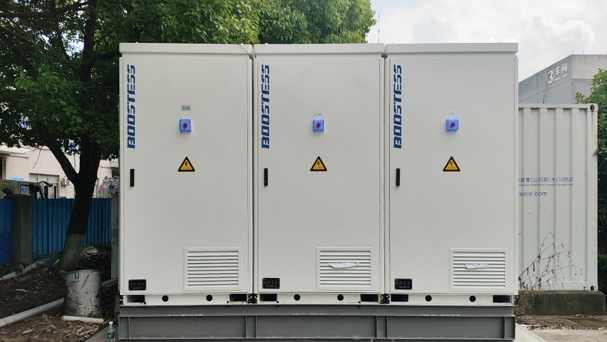

Modular cabinets/containers allow flexible capacity customization (e.g., 100kWh–5MWh).
Supports on/off-grid operation and parallel deployment (up to 4 units off-grid).

4. Cost Savings

Reduces energy costs by 30%–70% through peak shaving, solar integration, and grid independence.
Lower maintenance costs via cloud monitoring and quick-plug component design.

5. Safety

Multi-layer protection: automatic fire extinguishers, PACK-level immersion fire tech, and active thermal management.
Cell-level temperature control (<5°C variation) and strict quality certifications (IEC/UN38.3).

6. Smart Management

Cloud-based remote monitoring, AI energy optimization, and 24/7 fault detection.
Adaptive charging/discharging strategies maximize ROI.

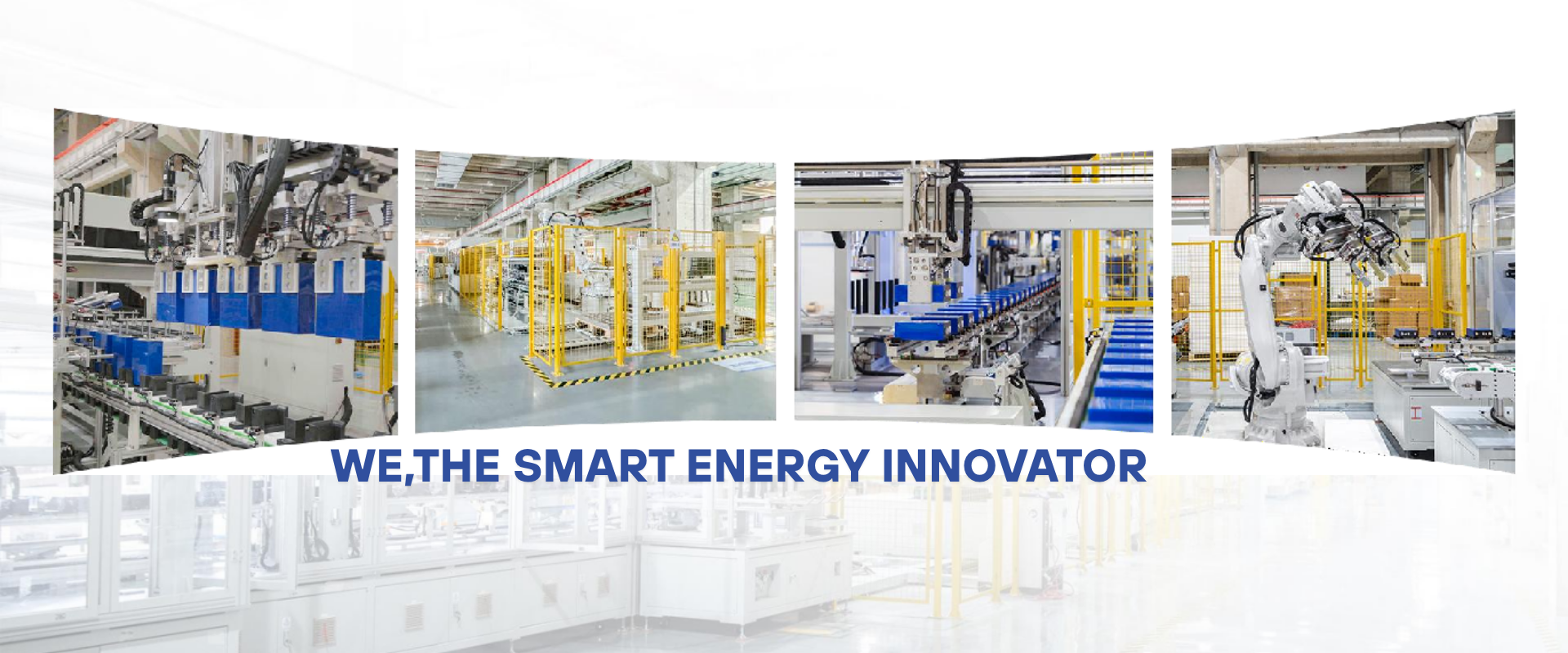

7. Manufacturing Strength

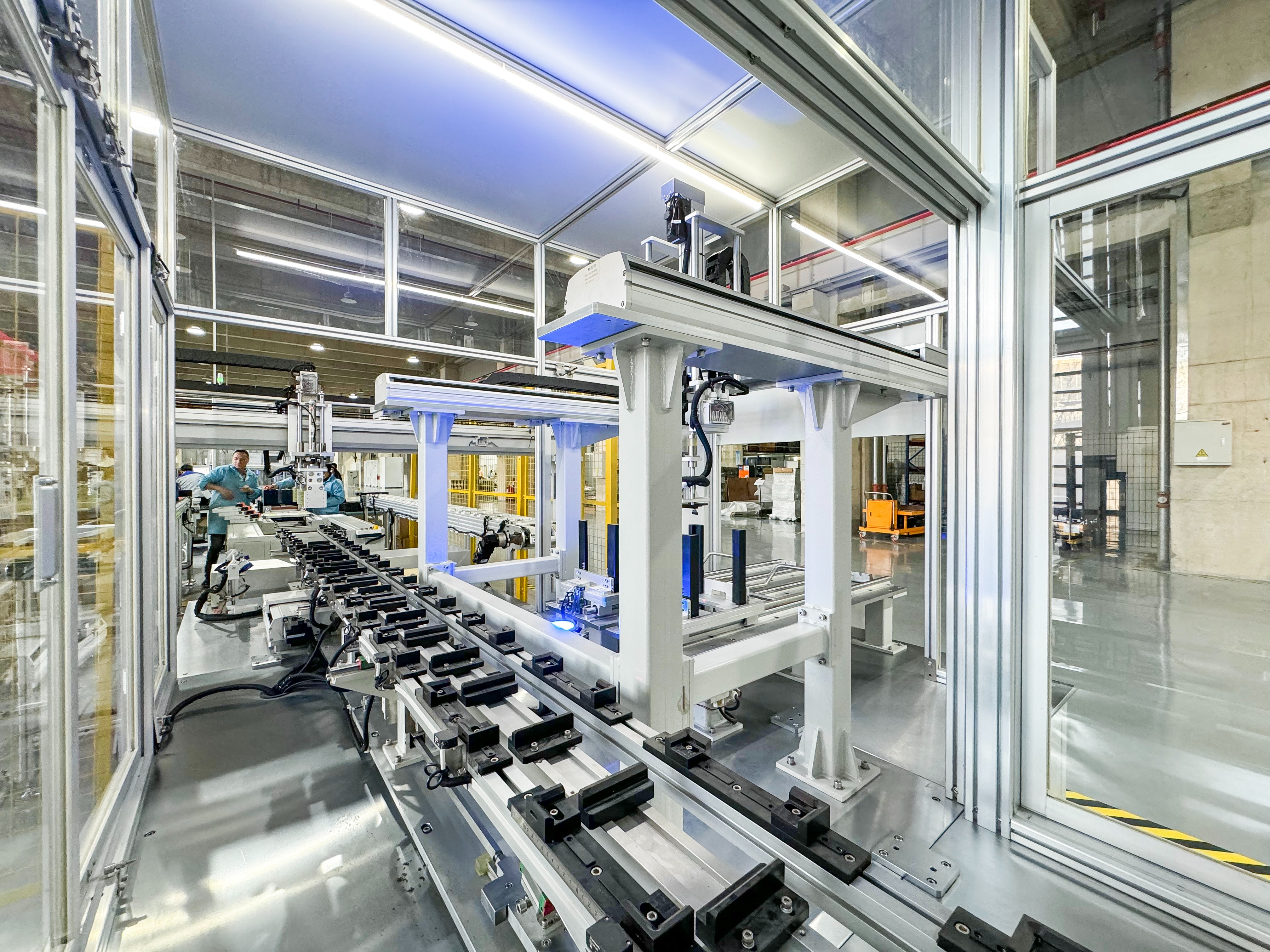

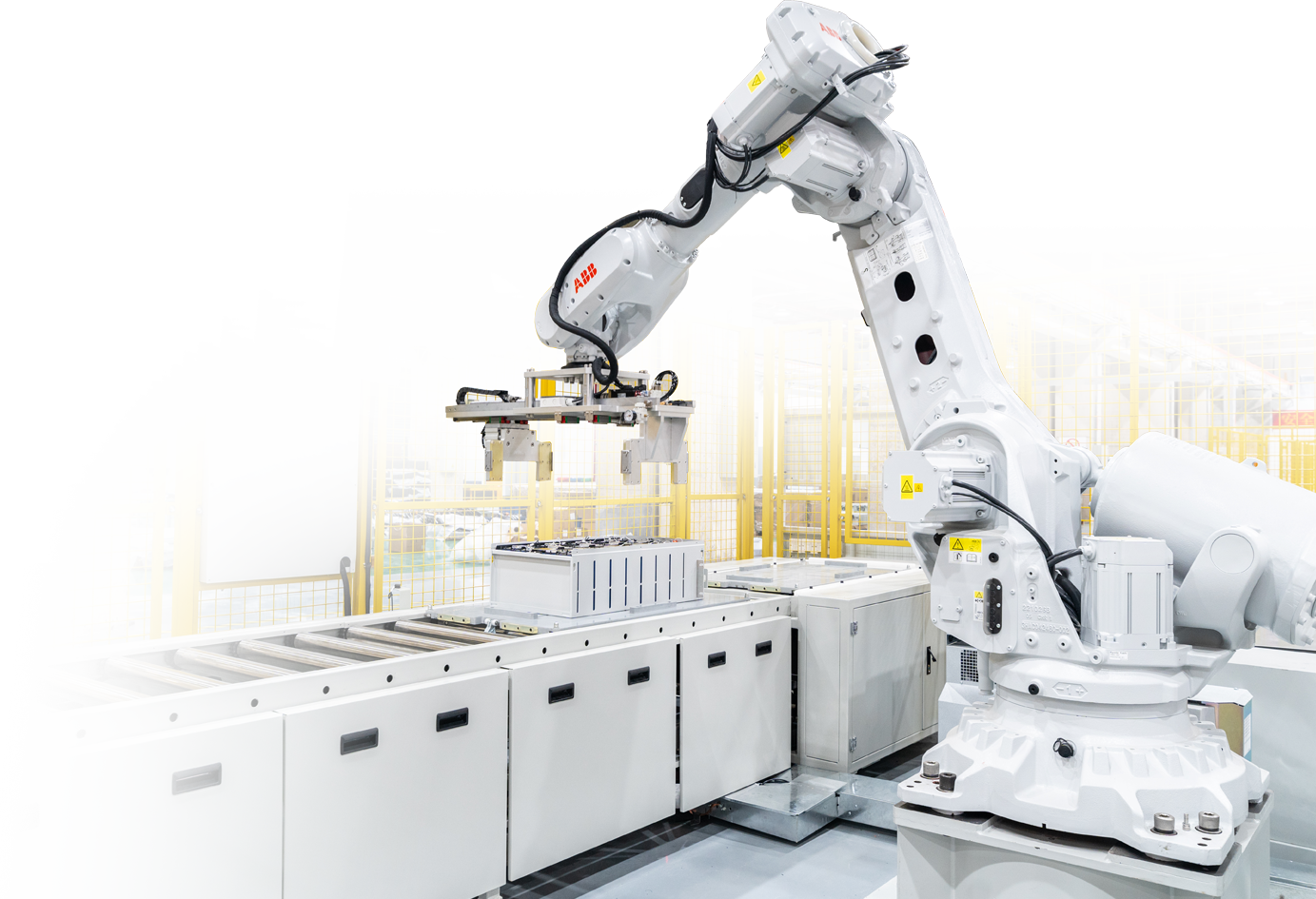

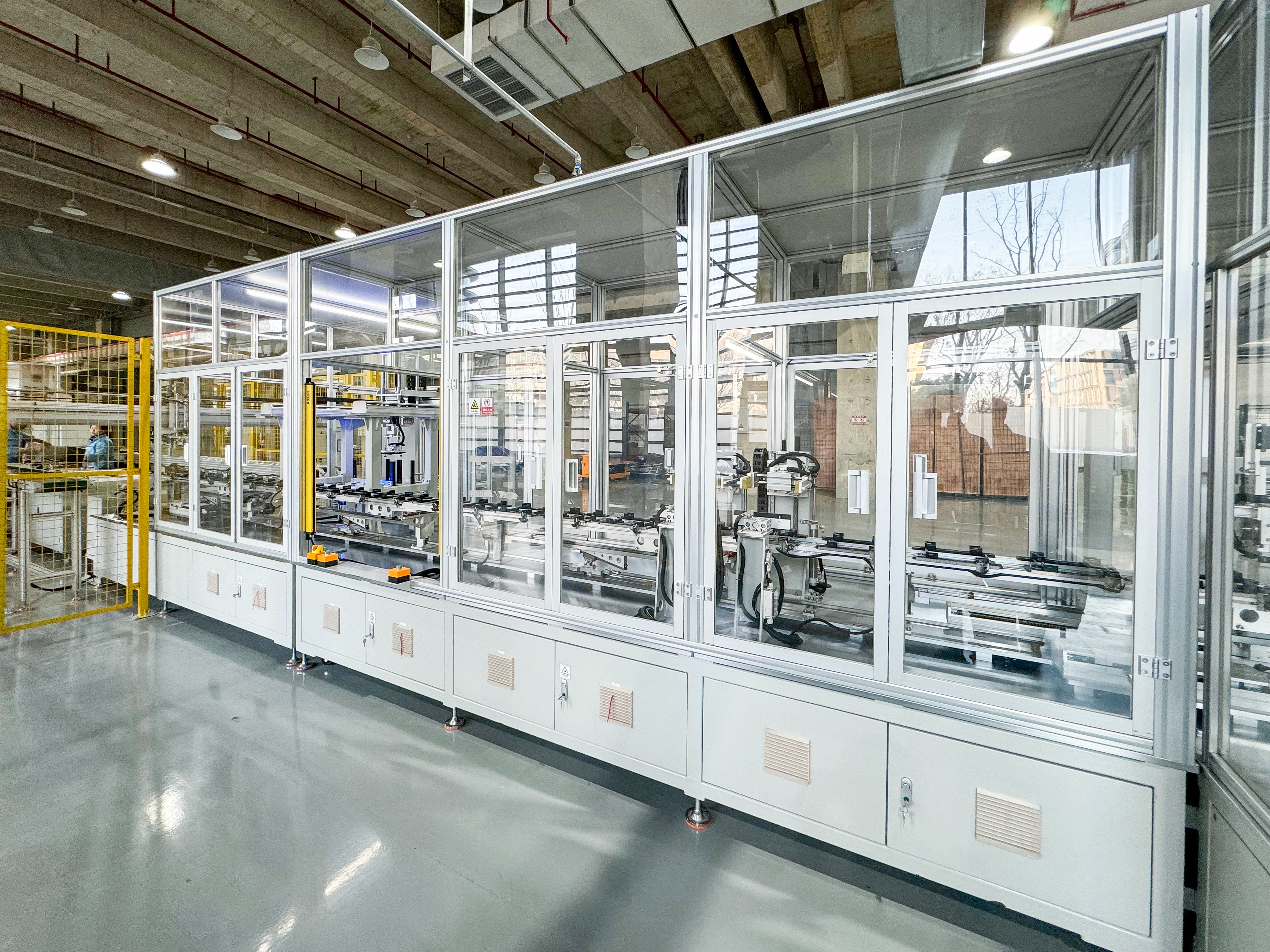

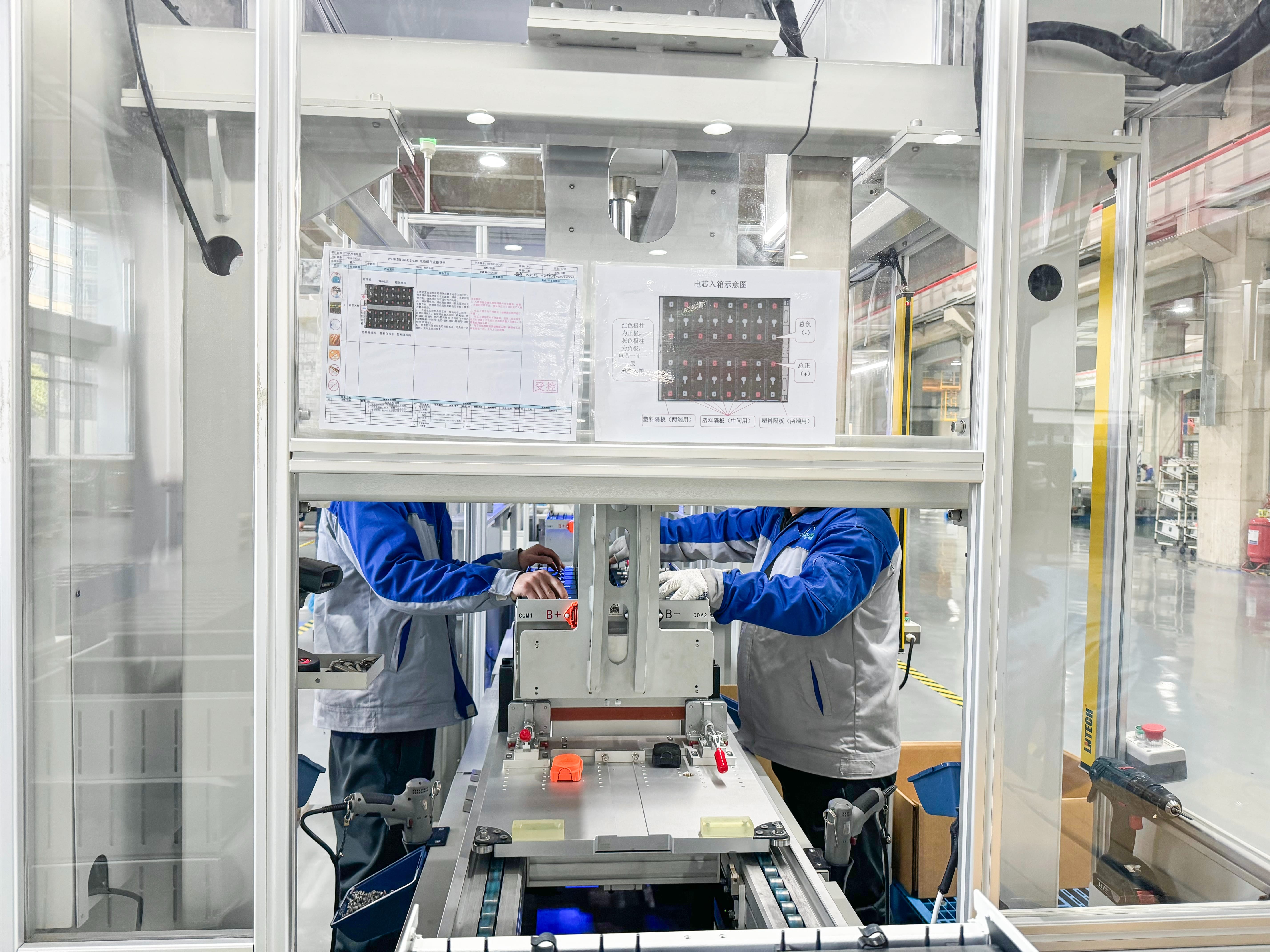

Fully automated production lines (air/liquid-cooled PACKs).
ODM capabilities and GWh-scale project experience.

▦
