Product Overview & Key Features

Standards & Compliance

Fully complies with European EN1757-2 and American ANSI/ASME safety standards.

Passed CE certification, compliant with standards including 98/37/EC, EN92-1:1991, EN292-2-1991/EN280, CE/UKCA, EN, CE (2006/42/EC), EN 280-1, ANSI A92 Series, OSHA, AS/NZS, etc.

Power & Performance

Industrial Power: Heavy-duty design optimized for 380V/50Hz AC power supply.
Premium Hydraulics: Equipped with an imported high-quality pump station for smooth, powerful, and consistent lifting.

Comprehensive Safety Systems

Obstacle Detection: A safety barrier device installed under the platform triggers an automatic stop if an obstruction is encountered during descent.
Anti-Pinch Design: Utilizes a scissor structure with safety clearances to prevent pinching or crushing injuries.
Fail-Safe Mechanisms:
- Overload Protection: Ensures the platform operates within safe weight limits.
- Explosion-Proof Valve: Prevents the platform from rapidly descending in the event of a hydraulic pipe burst.
- Maintenance Safety: Equipped with a safety wedge block for secure positioning during inspection or repair.

Mechanical & Maintenance

Maintenance-Free Pivots: Rotating shaft parts are equipped with self-lubricating bushings, eliminating regular manual lubrication.
Detachable Suspension: The suspension system can be detached to facilitate easier transportation and on-site installation.

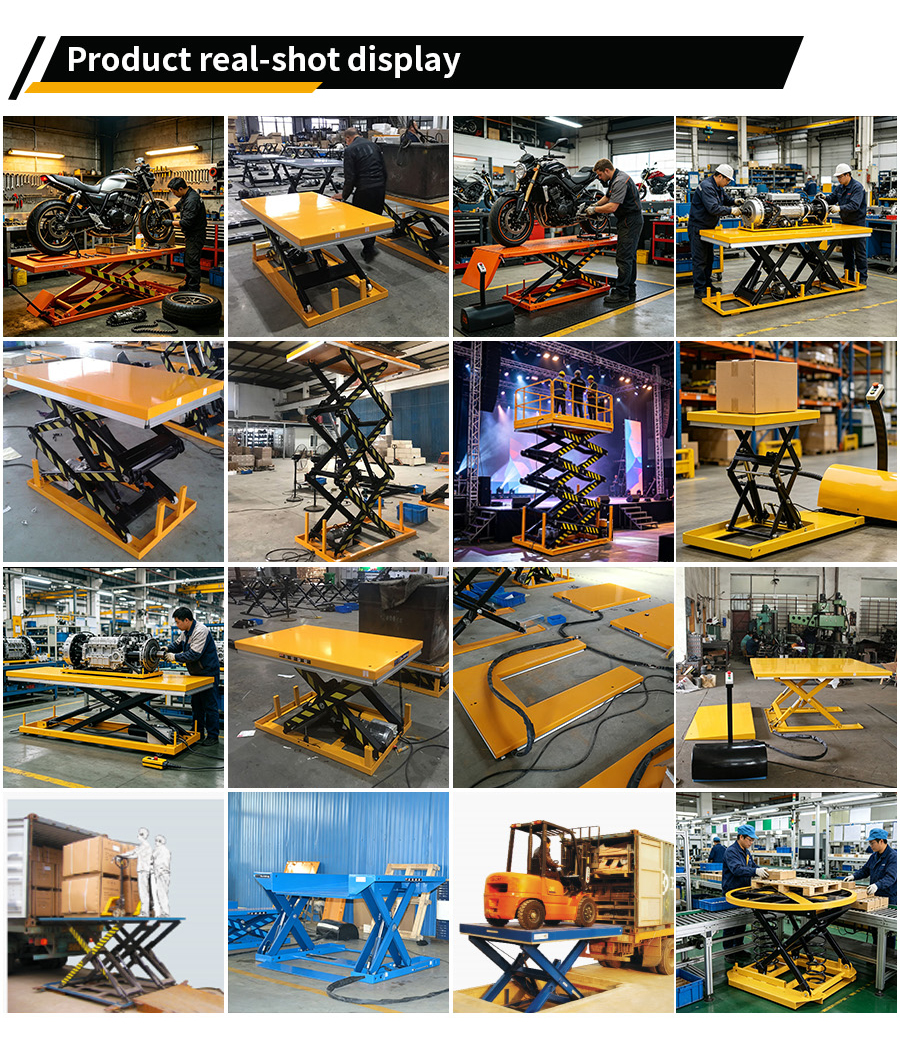

Applications: Widely utilized across manufacturing and maintenance industries for efficient cargo handling and assembly line support.

Product Parameters

Model	Rated Load Capacity (kg)	Platform Min./Max. Height (mm)	Platform Size (L×W, mm)	Base Size (L×W, mm)	Lift Time (s)	Power Parameters	Net Weight (kg)
TMJ-A1001	1000	205/990	1300×820	1240×640	20-25	380V/50Hz	160
TMJ-A1002	1000	205/990	1600×1000	1240×640	20-25	380V/50Hz	186
TMJ-A1003	1000	240/1300	1700×850	1580×640	30-35	380V/50Hz	200
TMJ-A1004	1000	240/1300	1700×1000	1580×640	30-35	380V/50Hz	210
TMJ-A1005	1000	240/1300	2000×850	1580×640	30-35	380V/50Hz	212
TMJ-A1006	1000	240/1300	2000×1000	1580×640	30-35	380V/50Hz	223
TMJ-A1007	2000	230/1000	1300×850	1220×785	20-25	380V/50Hz	235
TMJ-A1008	2000	230/1000	1600×1000	1220×785	20-25	380V/50Hz	268
TMJ-A2001	2000	250/1300	1700×850	1600×785	25-35	380V/50Hz	289
TMJ-A2002	2000	250/1300	1700×1000	1600×785	25-35	380V/50Hz	300
TMJ-A2003	2000	250/1300	2000×850	1600×785	25-35	380V/50Hz	300
TMJ-A2004	2000	250/1300	2000×1000	1600×785	25-35	380V/50Hz	315
TMJ-A2005	4000	240/1050	1700×1200	1600×900	30-40	380V/50Hz	375
TMJ-A2006	4000	240/1050	2000×1200	1600×900	30-40	380V/50Hz	405
TMJ-A2007	4000	300/1400	2000×1000	1980×900	30-40	380V/50Hz	470
TMJ-A2008	4000	300/1400	2000×1200	1980×900	35-40	380V/50Hz	490
TMJ-A4001	4000	300/1400	2200×1000	1980×900	35-40	380V/50Hz	480
TMJ-A4002	4000	300/1400	2200×1200	1980×900	35-40	380V/50Hz	505

Frequently Asked Questions

Q Are you a manufacturer/factory?

We are the original manufacturer, supporting online video calls or on-site factory visits anytime, and allowing for full order progress monitoring.

Q What are your payment terms?

We support all major global payment channels, as well as local cash payments, offering flexible and convenient settlement methods.

Q Is this type of equipment suitable for hazardous environments?

We support customized explosion-proof ratings, enabling us to withstand harsh operating environments such as high temperatures and high humidity.

Q Do you offer custom designs?

We provide comprehensive customization services, developing everything from complete machine solutions to specific components to your needs.

Q Do you provide equipment operation training?

We offer 24/7 remote technical guidance and training, with a global team of engineers ready to respond at any time.

Q What if the machine is damaged during transportation?

We have warehouses in multiple locations worldwide, supporting direct shipping, with comprehensive logistics support provided by local agents.

Q When does the warranty begin?

The warranty period begins from the date the product is officially put into use.

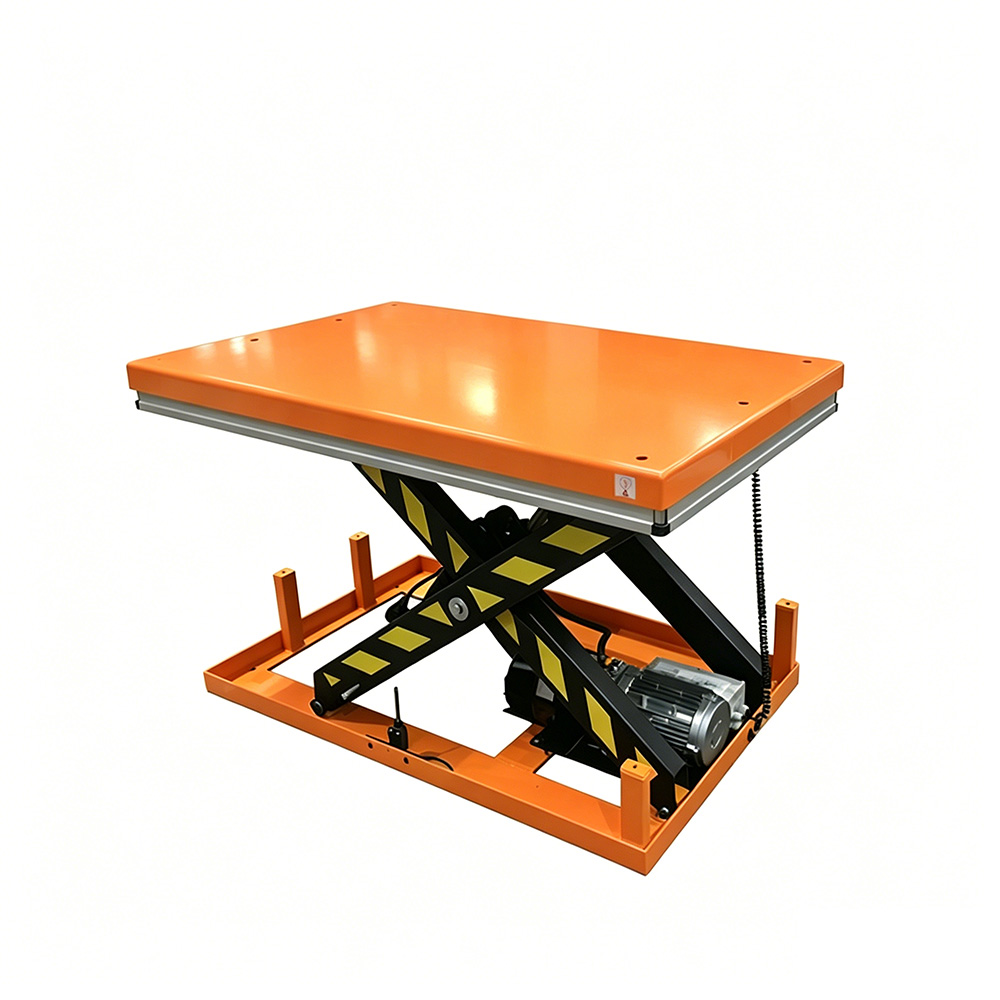

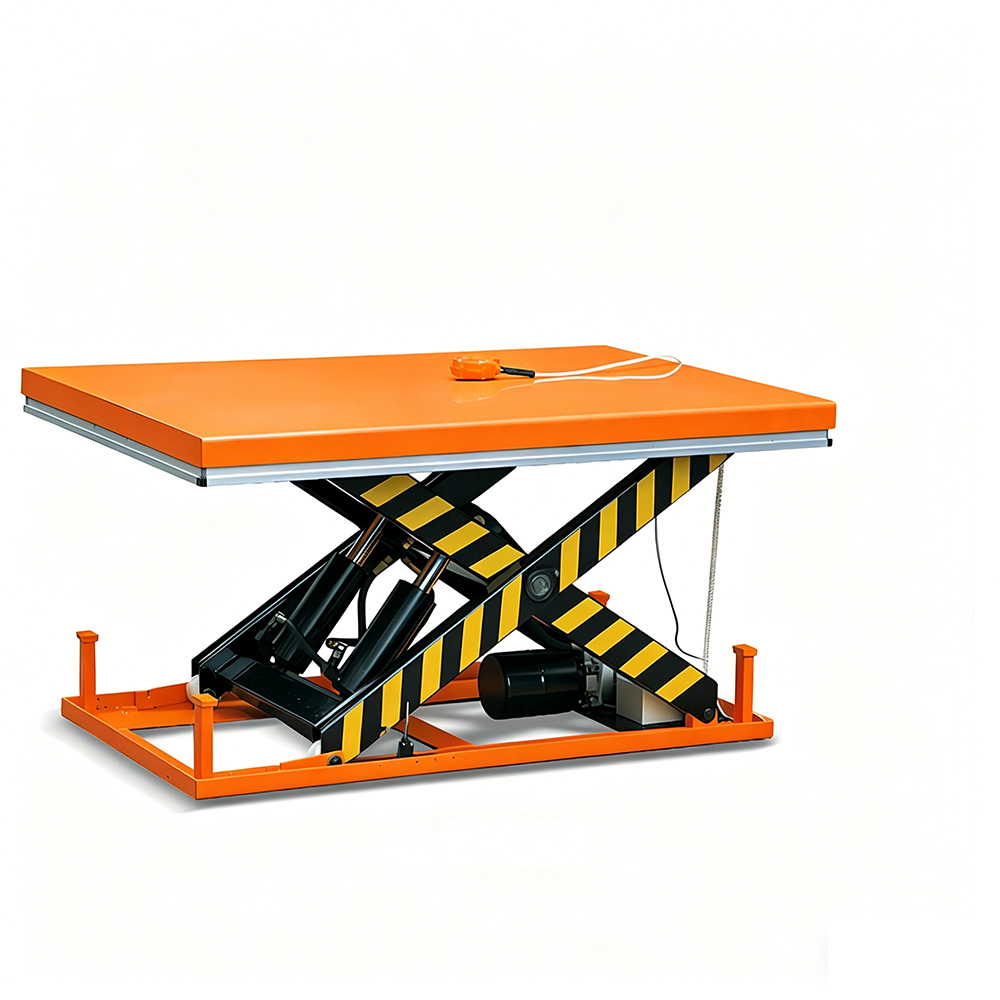

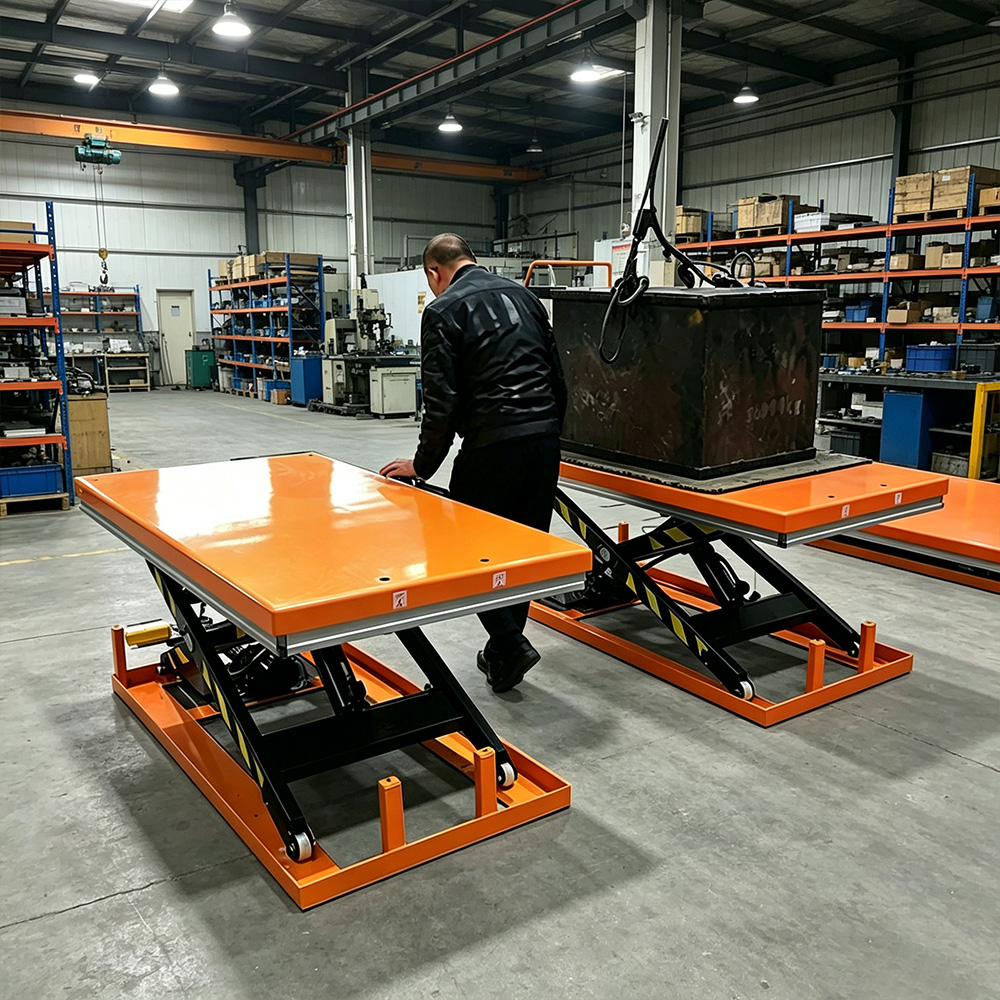

Other Woodworking Machinery 3000kgs Electric Hydraulic Stationary Scissor Lifter Table
