To achieve optimum pick speeds in high-velocity distribution centers, material handling vehicles must integrate seamlessly with precision racking, heavy-duty cargo cages, and modular conductive staging bins. Below are our factory-tested products deployed across ASEAN regional distribution centers.
Modern fulfillment demands picking accuracy exceeding 99.8% alongside rapid cycle times. Our factory engineers order pickers with specialized AC traction motors, mast deflection attenuation, and intelligent CAN-bus control systems to eliminate operational micro-delays.
Engineered for high-frequency ground and first-level picking operations, our LLOP systems feature intuitive tiller head controls, regenerative braking, and a low step-on platform height (under 130mm) that reduces operator musculoskeletal fatigue across 8-hour continuous shifts.
Designed to elevate the picker directly to pallet locations up to 12.5 meters. Equipped with heavy cold-drawn mast profiles and twin hydraulic lifting cylinders to drastically suppress mast sway and oscillation during elevated travel and simultaneous hoist cycles.
Equipped with 24V/48V high-energy Lithium Iron Phosphate (LiFePO4) power plants managed by smart BMS. Rapid opportunity charging capability allows 100% full charge in under 2 hours without hazardous off-gassing, outlasting legacy wet-cell lead-acid battery packs threefold.
Warehouse dynamics in Malaysia face specific micro-climatic and logistical constraints. From high-humidity bonded facilities in Port Klang to automated cleanrooms in Penang, our machinery and storage structures are configured to thrive locally.
Warehouses in Selangor handle vast volumes of transshipment FMCG, automotive parts, and retail merchandise. High ground rents require facilities to utilize vertical air rights up to 15 meters. Our VNA steel pallet racks, paired with high-level man-up order pickers, achieve narrow aisle widths of 1,600mm to maximize cube density.

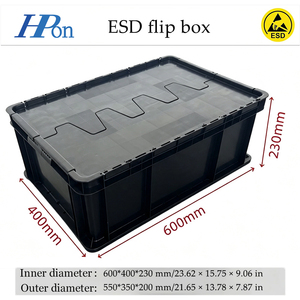

Semiconductor assembly and test facilities require strict static electricity elimination and dust-free stock picking. In tandem with our Haoputon ESD conductive flip-top bins, our electric order pickers operate with non-marking antistatic polyurethane tires, brushless AC traction motors, and zero particulate emission systems.
Serving both Malaysia domestic markets and same-day cross-border distribution into Singapore, Johor facilities feature fast-paced parcel sorting zones. Here, multi-layer boltless mezzanine platforms are combined with low-level high-speed order pickers to fulfill omnichannel batches around the clock.

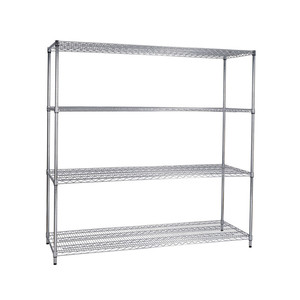

Malaysia is a global pioneer in Halal logistics certification (MS 2400). Our cold-storage specification package prepares order pickers and stainless/galvanized wire storage racks for -25°C walk-in freezer environments, preventing cabin condensation and premature contactor pitting.
Driven by the National Policy on Industry 4.0 (Industry4WRD) and surging regional e-commerce volumes, warehouse infrastructure across Malaysia is rapidly evolving from manual fork trucks to semi-automated, digitized order picking suites.
Malaysian operators are outfitting order pickers with optical navigation cameras and direct API linkages to SAP and Manhattan WMS. Trucks automatically navigate the fastest path along VNA aisles and adjust cabin lift heights automatically to the exact SKU coordinate, cutting human scanning delay.
Stricter enforcement of the Occupational Safety and Health Act 1994 (OSHA Malaysia) has mandated active pedestrian proximity detection, 360-degree blue spot safety beams, and mast camera displays on high-level equipment to protect ground workers from blind-spot overhead collisions.
MNC 3PL tenants in Malaysia require third-party suppliers to meet greenhouse gas reduction goals. Converting legacy internal combustion (IC) forklifts to pure electric LiFePO4 order pickers reduces direct scope-1 emissions, lower electrical utility overhead by 34%, and reduces indoor air particulates.
Compare mechanical architectures, aisle clearance envelopes, and duty cycles to select the optimal picking machine for your warehouse clear heights and floor load ratings.
| Equipment Model Archetype | Max Pick Height (mm) | Rated Load (kg) | Min Aisle Width (mm) | Floor Flatness (DIN / F-Min) | Ideal Application |
|---|---|---|---|---|---|
| Series 100 Low-Level (Ground / Level 1) | 1,200 mm | 2,000 - 2,500 kg | 2,200 mm | Standard Flat (FF 30) | High-throughput grocery picking, carton cross-docking |
| Series 300 Medium-Level Walk-Out Platform | 4,500 mm | 1,000 - 1,200 kg | 1,900 mm | DIN 18202 Table 3 | Automotive spare parts, e-commerce garment fulfillment |
| Series 700 High-Level Man-Up VNA Unit | 9,500 mm | 1,000 - 1,500 kg | 1,650 mm | Superflat (DIN 15185) | Pharmaceutical high-bay stores, PKFZ 3PL logistics |
| Series 900 Ultra-Reach Man-Up Specialist | 12,500 mm | 800 - 1,200 kg | 1,550 mm | VNA Defined Movement | Cold storage distribution, high-density electronics hubs |
Everything your engineering, procurement, and EHS teams need to know regarding customs duties, DOSH (JKKP) certifications, lead times, and post-installation support.
Under the Factories and Machinery Act 1967 (FMA) and OSHA regulations in Malaysia, lifting equipment elevating personnel (man-up platforms) must comply with certified structural safety factors. We provide comprehensive factory test certs, ISO 3691-1 compliance documentation, CE certificates, and PE-endorsed mechanical calculation sheets to support your JKKP inspection and PMA registration process.
Yes. Modern electric order pickers with high-efficiency Li-ion battery plants and automated warehouse racking systems frequently qualify for Automation Capital Allowance (Automation CA) through the Malaysian Investment Development Authority (MIDA), as well as GITA incentives when replacing fossil-fueled equipment. We furnish detailed technical data sheets for tax submission.
Relative humidity across Malaysia consistently exceeds 80%, which can cause terminal corrosion, sensor micro-arcing, and hydraulic fluid condensation. Our export machinery built for Malaysia features conformal-coated electronic PCBs, IP54-rated drive controllers, double-chromed hydraulic cylinder rods, and gold-plated automotive-grade harness connectors to guarantee uninterrupted operation.
Standard manufactured order pickers have a factory production window of 25 to 35 business days. Ocean transit from our deepwater terminal to Port Klang (Westports/Northports) or Penang Port requires only 7 to 12 days. Full custom configurations (e.g., bespoke cabin heights or guide rollers) typically ship within 45 days door-to-port.
We partner with experienced regional industrial equipment service teams in Klang Valley, Senai, and Butterworth. Critical fast-moving spares—such as polyurethane load wheels, hydraulic solenoid valves, contactor relays, and brake coils—are warehoused regionally to provide 24-48 hour field dispatch.
Yes. We design and calibrate both inductive frequency wire-guidance sensors and heavy mechanical side-roller guide assemblies. When ordering a complete intralogistics package, our team collaborates directly with your civil floor contractors to guarantee compliance with DIN 15185 or VDMA superflat floor tolerances.
With 18+ years of dedicated industrial storage and material handling equipment fabrication, over 500 major international projects completed, and end-to-end oversight from raw steel rolling to site commissioning, we eliminate subcontractor friction.
Our unique Real-Time Project Tracking System grants Malaysian clients transparent online monitoring across every milestone: CNC laser cutting, robotic mast welding, cathodic electrophoretic coating, factory acceptance testing (FAT), and international sea transport tracking right to Port Klang.
Precision Engineering
Turnkey Projects
Digital Live Tracking
Audited Quality Control
Consult with our senior intralogistics engineering specialists today. We provide free preliminary layout drawings, throughput kinematic calculations, and comprehensive equipment quotations matching your building dimensions and budget.
