Precision-Engineered Mezzanines, Vertical Freight Elevators & High-Density Intralogistics Systems Built to International Safety & Structural Codes
Engineered for seamless vertical material transit, continuous picking lines, and structural space maximization under demanding operational cycles.
A structural, hydraulic, and electrical evaluation framework for global logistics directors and supply chain engineers evaluating China-sourced platform lift solutions.

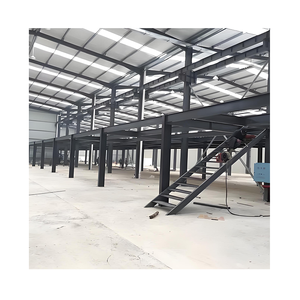

Industrial platform lifts and high-bay mezzanine structures depend fundamentally on the yield strength of the steel used. Certified China manufacturers select primary columns fabricated from heavy structural H-beams or closed-profile structural tubes, while secondary joists utilize high-tensile cold-rolled steel (Q235B or Q355B). This composition prevents horizontal micro-flexing, dynamic fatigue, and structural sagging under concentrated wheel loads.
Unlike standard commercial cargo elevators, industrial vertical platform lifts utilize dual or quadruple leaf chain lifting mechanisms driven by precision-ground hydraulic rams. Integrated hose-burst safety check valves instantly lock platform motion in the rare event of pressure loss. Guided counterweight assemblies combined with electronic leveling sensors guarantee smooth alignment at multi-tier picking levels.
International safety compliance (ASME B20.1 and EN 81-31) dictates full physical enclosure or laser safety light curtains. Electrical interlocks prevent platform movement when landing gates remain open, while auto-closing safety tripbars and mesh side baffles prevent pallet overhang during vertical travel, eliminating dropped cargo hazards over high-traffic warehouse floor zones.
How forward-thinking procurement teams are upgrading legacy vertical transport into modular, electrified, and data-connected material handling backbones.
Industrial platform lifts are no longer manual push-button stations. Modern procurement briefs require PLC integration (Siemens / Schneider) allowing autonomous mobile robots (AMRs) to call the lift, roll onboard autonomously via optical or Wi-Fi handshakes, change elevation levels, and disembark without human intervention, boosting 24/7 cross-docking velocity.
Rising industrial electricity tariffs across Europe, North America, and the Middle East are accelerating the procurement of variable frequency drive (VFD) hydraulic power packs. By dynamically modulating motor speed based on payload mass and re-harvesting downward fluid pressure, facility operators achieve up to a 34% drop in monthly elevator electrical consumption.
Shipping oversize assembled steel structures across ocean freight lanes incurs excessive logistics surcharges. Leading Chinese exporters now pre-engineer bolt-together, completely knocked down (CKD) chassis modules that fit snugly into standard 40ft High Cube containers. This cuts maritime freight expenditures by up to 45% while enabling 4-day on-site bolt assembly.
Combining 18+ years of structural manufacturing depth, strict quality verification, and an exclusive real-time cloud tracking system.
| Evaluation Parameter | Our Advanced Manufacturing Standard | Standard Market Exporter Profile | Operational Impact for Buyers |
|---|---|---|---|
| Raw Structural Steel | Certified Q235B / Q355B Cold-Rolled Carbon Steel with MTR test reports | Recycled or uncertified structural profiles | ✓ Zero structural deformation under dynamic loads |
| Hydraulic Safety Systems | Dual Italian-style anti-rupture valves, emergency manual release & dual leaf safety chain | Single-line basic cylinder without automatic pressure locks | ✓ 100% fail-safe containment in hydraulic loss scenario |
| Surface Protection | Automated electrostatic epoxy powder coating (80-120μm) + hot-dip galvanization | Manual air spray painting (<40μm thickness) | ✓ 10+ Years rust protection in coastal GCC & tropical ports |
| Quality Assurance & Tracking | Proprietary Project Tracking System with real-time manufacturing & pre-shipment testing video | Intermittent email updates without live visual verification | ✓ 100% production transparency from raw cut to FOB port |
| Custom Engineering Capabilities | Full 3D SolidWorks & AutoCAD layout simulation customized to ceiling heights and column grids | Fixed catalogue sizes only; buyer must adapt building | ✓ Maximum floor-space density without costly civil modifications |
Clear, technical, and commercial answers to resolve import concerns, layout planning, and compliance certifications.
Our vertical hydraulic freight lifts and equipment platform elevators handle ratings from 500 kg (1,100 lbs) for mezzanine carton logistics up to 10,000 kg (22,000 lbs) for heavy forklift and pallet transitions. Platforms, guide rails, and hydraulic cylinder bores are structurally dimensioned according to your maximum concentrated load point.
While an excavation pit (typically 200 mm to 400 mm) provides a seamless flush floor entry, a pit is not strictly required. We engineer low-profile platform designs equipped with a compact fixed or hinged transition ramp, allowing pallet jacks and roll cages to roll directly onto the lift base installed on the existing concrete warehouse slab.
Our lifting machinery, mezzanines, and structural components comply with CE Machinery Directive 2006/42/EC, harmonized standard EN 81-31 (accessible goods-only lifts), and relevant portions of ASME B20.1 for conveyor and vertical lift applications. Every machine undergoes electrical load, deflection, and safety drop testing prior to crating.
Heavy upright guide rails and cross-beams are wrapped in multilayer anti-scratch foam and secured to steel transport skids with heavy-duty tension strapping. Hydraulic pumping stations, cylinders, control cabinets, and precision sensor boxes are packed in fumigated IPPC-stamped plywood sea-freight crates with moisture-absorbent silica gel.
Yes. Because industrial platform lifts are classified as material handling machinery rather than commercial passenger elevators, self-assembly by certified millwrights or qualified mechanical contractors is common. We deliver 3D step-by-step schematics, numbered wiring harnesses, and video guides, backed by remote video engineering assistance.
Please share: 1) Desired platform dimensions (width × depth); 2) Net travel height (slab to slab); 3) Maximum payload weight; 4) Ingress/egress direction (same-side, through-access, or 90-degree); and 5) Warehouse power specifications (e.g., 380V 50Hz 3-Phase or 480V 60Hz 3-Phase). We deliver drawings within 24 hours.
Speak directly with our senior application engineering group for complimentary 2D/3D CAD layouts, structural calculations, and complete FOB/CIF price schedules.
