Precision-manufactured structural systems designed to interface with selective pallet aisles, narrow-aisle guided automated cranes, and heavy industrial distribution centers.
Passivated austenitic SS304 ultrasonic cleaning and ultrasonic degreasing container for high-precision components and pharmaceutical storage.

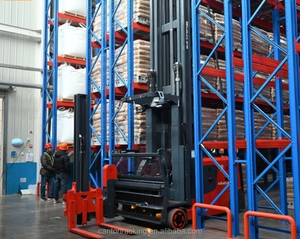

Engineered for turret trucks and wire-guided AGVs to compress aisle width to 1,600mm while preserving 100% selective individual pallet access.
Carbon steel electroplated modular drop-in baskets designed for sub-assembly picking shelves, distribution kitting, and retail bulk staging.
ISO9001 certified 4.5mm cold-formed steel protective bumper shield with safety yellow electrostatic coating and optical reflective bands.
High-energy dissipative polyurethane-polyethylene modular column wrap engineered to neutralize high-tonnage forklift corner and perimeter impacts.

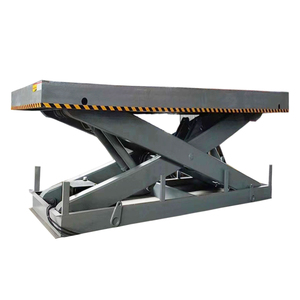

Reinforced dual-scissor hydraulic cargo elevator designed for multi-tier mezzanine goods transfer, rated for continuous 800kg–5,000kg payload cycles.

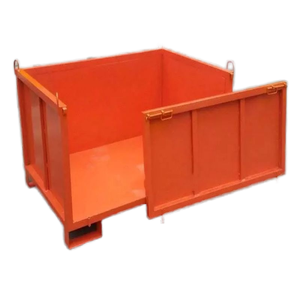

Robotic welded corrugated steel industrial turnover container with 4-way forklift entry, drop-gate access, and crane-hoist dynamic lifting lugs.
Free-standing or rack-supported multi-tier steel mezzanine systems doubling or tripling facility usable floor area without costly civic expansions.
Procuring heavy-duty metal pallet racks is a critical capital expenditure (CapEx) decision involving structural safety, operational throughput, and life-safety compliance. As an established OEM/ODM manufacturer and exporter, our engineering practice is built on over 18 years of direct intralogistics development, delivering more than 500 completed turnkey warehouse installations across challenging geotechnical, seismic, and logistics environments globally.
Our manufacturing ecosystem complies strictly with RMI (Rack Manufacturers Institute) MH16.1, EN 15512:2020 (European standard for steel static storage systems), and AS4084-2023. Every cold-rolled upright profile originates from certified prime continuous-cast structural coils—principally high-tensile Q235B, Q355B, or equivalent ASTM A1011 grade steels. Upright post sections undergo automated computer numerical control (CNC) punching with precision-indexed teardrop, hexagonal, or diamond pitch intervals, followed by continuous multi-station roll-forming lines that lock microscopic tolerances to within ±0.5mm across the entire length of a 12-meter continuous vertical column.
Finite Element Analysis (FEA) models verify baseplate anchor pull-out, sway frame rigidity, second-order (P-Delta) structural moments, and floor slab load dispersion for earthquake acceleration zones.
Customization of beam profile cross-sections (box beams, step beams, structural C-channels), customized upright widths (80mm to 140mm), gauge thicknesses (1.5mm to 3.0mm), and branded electrostatic powder hues.
Enterprise buyers access our real-time Project Tracking System: monitor mill steel batch certificates, automated welding QA, pre-shipment dimensional staging, and container packing via milestone logs.
Environmental corrosion in ambient GCC distribution facilities, coastal freight terminals, or blast-freezing facilities requires specialized surface treatments. Our manufacturing lines implement a rigorous 9-stage pre-treatment wash consisting of alkaline degreasing, zinc phosphating, and deionized water flushes before entering an automated electrostatic spray booth. The thermo-setting polyester epoxy powder coating achieves an average dry film thickness of 60 to 90 microns (μm), curing at 200°C to deliver exceptional pencil hardness (≥2H) and cross-hatch adhesion meeting ISO 2409 Class 0 standards. For outdoor, corrosive chemical, or sub-zero (-30°C) cold storage applications, hot-dip galvanization (HDG) to ASTM A123 or continuous pre-galvanized zinc-aluminum-magnesium coatings provide long-term cathodic defense against rust creep.
Direct comparative analysis of primary metal pallet rack architectures to guide facility footprint calculations, lift truck synergy, and volumetric utilization.
| Racking Architecture | Aisle Clear Width | Pallet Selectivity | Volumetric Density | Deflection Limit (L/200) | Best Fit Application |
|---|---|---|---|---|---|
| Standard Selective Racking | 3,000mm – 3,500mm | 100% Direct Access | Moderate (40–45%) | Standard Euro / GMA Loads | 3PL, FMCG, dynamic SKU assortments |
| Very Narrow Aisle (VNA) | 1,600mm – 1,850mm | 100% Direct Access | High (60–65%) | Precision High-Bay Guided | E-commerce fulfillment, high-rack hubs |
| Double-Deep Pallet Racks | 3,000mm – 3,200mm | 50% FILO Access | High (55–60%) | Extended Pantograph Reach | Dry grocery, bulk raw material staging |
| Drive-In / Drive-Through | Eliminated (Drive-In) | Low (Batch LIFO) | Extreme (75–85%) | Continuous Guide Rail Rails | Cold storage, seasonal batch inventory |
| Rack-Supported Mezzanine | Configurable Tiered | Multi-Tier Pick Face | Maximum Vertical Yield | Heavy Structural I-Beams | Sub-assembly, slow-moving manual pick |
Key industry shifts defining industrial warehouse procurement, structural steel automation, and next-generation smart warehousing through 2030.
Conventional forklift-operated static bays are rapidly transitioning into Automated Storage and Retrieval System (AS/RS) frameworks. Procurement contracts now demand tighter manufacturing tolerances (≤1.0mm deflection variance across 10-tier spans) to interface seamlessly with high-speed automated cranes and autonomous mobile robots (AMRs).
Modern procurement prioritizes high-strength thermo-mechanically rolled steels that reduce component self-weight while boosting load carrying capacity. This optimization decreases dead-weight footprint on warehouse concrete slabs and reduces international ocean freight shipping container volume by up to 18%.
Facilities are integrating sensor arrays directly into upright frames and protective column guards. Strain gauges and wireless accelerometers transmit real-time telemetry to warehouse management systems (WMS), alerting safety officers instantly when forklift collisions exceed certified structural deflection thresholds.
Enterprise procurement directors are shifting evaluations from initial price-per-ton to Total Cost of Ownership (TCO). High-quality powder coatings, certified robotic welds, and standardized modular teardrop patterns eliminate recurring downtime, frequent retrofits, and costly component replacements.
Corporate ESG directives require steel suppliers to document Environmental Product Declarations (EPDs). OEM manufacturers utilize electric arc furnace (EAF) low-carbon recycled scrap and closed-loop, solvent-free electrostatic powder recovery systems to meet LEED warehouse certifications.
Cross-border distribution hubs require rack designs capable of simultaneously accommodating Euro pallets (1200×800mm), ISO standard pallets (1200×1000mm), and North American GMA pallets (48×40in) via drop-in wire mesh decking and stepped cross-channel pallet supports.
Detailed technical answers to common queries raised by procurement managers, structural engineers, and facility planners during the bidding and execution phases.
Our integrated design-to-handover protocol guarantees single-source accountability, transparent milestone scheduling, and zero unexpected site modifications for distributors and engineering contractors worldwide.
Laser-scanning survey and architectural integration: measuring clear ceiling heights, building columns, floor slab joints, overhead sprinkler arrays, and egress pathways.
Finite element load analysis, beam deflection limits, slab point-load distribution verification, and seismic zone compliance sign-off by structural engineers.
Continuous roll-forming, robotic pulse welding of beam connectors, 9-stage pre-treatment, electrostatic powder coating, and digital batch quality control.
Palletized staging, rust-preventive marine container packing, real-time shipment milestone tracking, and international customs clearance documentation.
Precision laser-guided alignment, torque-controlled anchor installation, verticality sign-off, system commissioning, and delivery of stamped safe working load plaques.
Periodic safety audits, replacement beams, upright protectors, expansion kits, and technical support backed by our digital engineering archives.
