Precision-engineered electric stacker operations require flawless compatibility with high-load structural racks, collision barriers, and standardized wire containers. Explore our high-performance intralogistics modules manufactured to exact engineering tolerances.
Modern distribution centers, cold-storage logistics, and high-velocity manufacturing facilities require tailored material handling machinery that matches physical rack geometry, aisle width limitations, and floor slab load-bearing capacities. Selecting an OEM/ODM manufacturing partner demands comprehensive insight into drivetrain reliability, mast structural rigidity, and custom lithium-ion electro-hydraulic integration.
Industrial electric stacker trucks undergo massive cyclic torsional stress during high-elevation pallet staging up to 6,000mm. We engineer duplex and triplex masts using cold-drawn German H-beam profiles that minimize deflection, eliminate mast shuddering, and preserve dynamic residual capacity.
Brushless AC drive systems deliver maintenance-free runtime, immediate low-end torque curves, and proportional acceleration control. When deceleration occurs on ramps or flat concrete, regenerative electro-magnetic braking recaptures kinetic energy directly back into the battery bank.
Transitioning from lead-acid to integrated 24V/48V LiFePO4 battery modules eliminates acid spills, dedicated venting rooms, and battery watering routines. With opportunity charging, your electric stacker operates across multiple shifts with zero thermal degradation.
Compare standard and custom engineered configurations across pedestrian walkie, stand-on platform, and counterbalanced stacker categories.
| Specification Feature | Walkie Pedestrian Stacker | Ride-On Platform Stacker | Counterbalanced Walkie Stacker | Custom ODM Engineered Stacker |
|---|---|---|---|---|
| Rated Load Capacity | 1,000 kg – 1,500 kg | 1,600 kg – 2,000 kg | 1,200 kg – 2,500 kg | Customized up to 3,500 kg |
| Lift Height Range | 1,600 mm – 3,600 mm | 2,500 mm – 5,500 mm | 1,600 mm – 4,500 mm | Triplex Full-Free Lift to 6,200 mm |
| Operating Aisle Width (Ast) | 2,050 mm – 2,250 mm | 2,350 mm – 2,550 mm | 2,650 mm – 2,900 mm | Tailored to clear rack beam width |
| Mast Architecture | Simplex / Standard Duplex | Duplex Wide-View / Triplex | Heavy-Duty Tilt Mast (-3°/+5°) | Full-Free Lift with Side-Shift |
| Chassis & Straddle Design | Fixed Wrap-Over Base Legs | Heavy Box Straddle Legs | No Base Legs (Open Fork Area) | Adjustable Outriggers for Closed Pallets |
| Traction Motor System | 0.9 kW – 1.2 kW AC Drive | 1.5 kW – 2.2 kW AC High-Torque | 2.2 kW – 3.0 kW AC Heavy-Duty | Dual AC Drive / Steering-by-Wire |
| Energy Source | 24V/100Ah – 150Ah LiFePO4 | 24V or 48V / 210Ah Lithium | 48V / 280Ah Lithium System | Dual Rapid Swap Battery Packs |
Material handling trucks do not exist in isolation. As a turnkey intralogistics specialist established in 2005 with over 500 projects completed, Gulf Racking & Shelving LLC provides the exact physical synergy needed between stacker turning radiuses, upright column protection, and multi-tier structural mezzanine flooring.
In high-density narrow aisle (VNA) or standard selective racking bays, the clearance margin between stacker base legs and upright frames is often less than 150mm. Accidental impact from a loaded 2,000kg stacker can compromise the structural load threshold of an entire multi-bay rack.

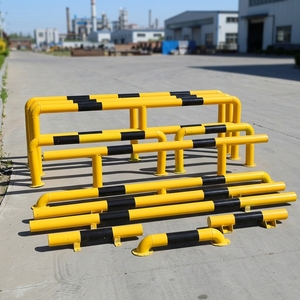

Our turnkey methodology couples custom stacker procurement with reinforced Anti-Collision Steel Pipe Column Protectors and heavy-duty wrap-around aisle end guards. By engineering physical safeguards directly alongside the stacker's turning circle geometry, facilities eliminate rack collapse hazards, maintain safe egress paths, and comply with international EN 15635 warehouse safety standards.

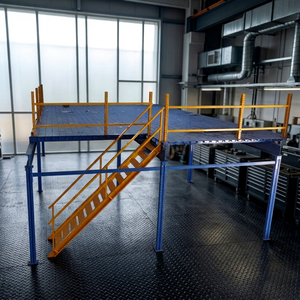

Operating electric stackers on elevated multi-tier platforms or mezzanine floors demands strict engineering controls regarding point-load distribution, wheel floor pressure, and pallet containment. Stacking non-standard cargo directly onto beams invites pallet deflection and tipping hazards.

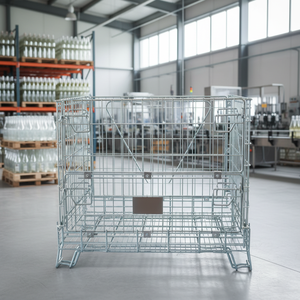

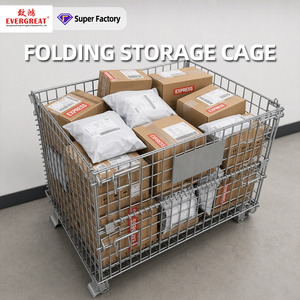

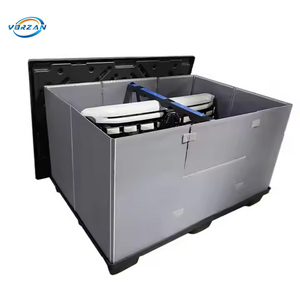

We deploy industrial-grade Foldable Steel Wire Mesh Containers (1,000kg capacity) and heavy-duty Collapsible Bulk Pallet Boxes. These containers interface seamlessly with stacker fork tines, while our structural mezzanine platforms feature calculated deck spans and load-distribution steel plates designed specifically to support dynamic electric stacker axle loads during active loading cycles.
Procurement directors and supply chain executives are moving away from piecemeal catalog purchases. Sourcing decisions over the next five years will be dictated by total cost of ownership (TCO), intelligent telematics, ergonomic operator retention, and carbon neutral ESG compliance.
Procurement contracts now prioritize factory-integrated IoT hardware. Modern electric stackers feature GPS tracking, operator biometric access control, automated impact sensor logging, and predictive maintenance alerts transmitted directly to warehouse ERP systems to reduce unmonitored equipment abuse.
Warehouses are bridging human-operated trucks with autonomous guided vehicles. Buyers increasingly demand OEM stacker chasses built with pre-engineered drive-by-wire steering interfaces, LiDAR bracket recesses, and safety optical circuit breakers that allow fast retrofit to autonomous AGV operation.
The total replacement of lead-acid units by certified LiFePO4 batteries is near complete. Progressive buyers specify modular battery cassettes that can be recharged via on-site industrial solar arrays, utilizing standardized fast-charging protocols across all walkie, reach, and counterbalance fleets.
Continuous refinement in structural metallurgy, digital controls, and human factors engineering defines the modern frontier of electric stacker truck manufacturing.
Structural chassis frame failures are virtually eliminated through automated fiber laser plate cutting and multi-axis robotic seam welding. High-tensile Q345B steel structural plates undergo strict ultrasonic flaw detection, ensuring stress-relieved weld beads that withstand million-cycle vibration stress across demanding warehouse dock boards and uneven concrete joints.
In OEM/ODM batch production, automated jig positioning maintains tolerances within ±0.5mm, ensuring absolute alignment of drive wheel shafts, caster assemblies, and vertical mast mounting trunnions.
Modern tiller heads are engineered with symmetric dual butterfly throttles, responsive belly-reverse emergency stop buttons, and creeping speed (turtle mode) activation for millimeter-precision pallet insertion with the tiller handle locked in the full vertical position.
High-contrast digital displays give operators real-time feedback on residual battery capacity, actual lifting height, steer wheel angle, and error diagnostic codes, drastically decreasing operator fatigue while boosting picking cycles per hour.
Drawing on an 18-year legacy since 2005, Gulf Racking & Shelving LLC provides comprehensive engineering support, unmatched supply transparency, and single-source accountability for full warehouse fit-outs across the UAE and global markets.
Over 18 years of direct industrial engineering and 500+ executed warehouse projects guarantee deep domain mastery across pallet dynamics, safety codes, and custom machinery integration.
Clients access our exclusive Project Tracking System to monitor engineering CAD designs, production milestones, shipping dispatches, and on-site commissioning in real time.
From initial laser floor surveys and load engineering to component delivery, mechanical anchoring, and final safety load audits, our in-house certified technicians control every phase.
We tailor straddle leg dimensions, fork tine lengths, cold-storage coatings, dual mast free-lifts, and international controller parameter programming to match individual client requirements.
We deliver both the material handling equipment and the complete storage infrastructure: heavy pallet racking, mezzanine platforms, wire containers, column guards, and decking panels.
Routine structural health inspections, certified preventative maintenance programs, and an immediate inventory of critical OEM spare parts guarantee zero unplanned warehouse downtime.
Clear, technical, and commercial answers to critical questions faced by industrial procurement teams during electric stacker truck evaluation and factory selection.
Wrap-over stackers feature fixed base support legs positioned directly beneath the lifting forks. They are engineered strictly for open-bottom pallets (such as standard Euro pallets without bottom perimeter boards). In contrast, straddle leg electric stackers feature wider, outboard base legs that straddle the exterior of the pallet, permitting the lifting of closed-bottom, full-perimeter double-faced pallets (such as ISO/GCC 1200x1000mm pallets) safely and stably.
As an electric stacker raises a load above approximately 2,500mm to 3,000mm, the truck's combined center of gravity shifts forward and upward, decreasing maximum rated capacity to maintain longitudinal and lateral stability. Residual capacity depends on mast stiffness, load center distance (standard 600mm), battery counterweight, and chassis wheelbase. Our engineering team provides verified load derating charts for every custom OEM/ODM mast build to ensure full ISO 3691 stability compliance.
Lithium Iron Phosphate (LiFePO4) chemistries offer three times the cycle life (over 3,500 cycles vs. 1,000 cycles for lead-acid), zero maintenance (no distilled water replenishment), and support continuous opportunity charging during operator breaks without thermal runaway risks. Furthermore, lithium packs eliminate harmful acid venting gases, allowing stacker charging directly on warehouse floors rather than isolated, spark-proof charging bays.
Yes. For cold storage and frozen food distribution environments down to -25°C, we provide specialized cold-store packages. These include enclosed stainless steel pivot pins, low-temperature anti-freezing hydraulic fluid, sealed IP65 multi-pin electrical harness connectors, internal heating resistors inside the electronic display/control tiller head, and insulated thermal battery enclosures.
To engineer the ideal model, provide: maximum load weight to lift, maximum required top-beam lift height, exact pallet dimensions and bottom board layout (open or closed), clear aisle widths between rack face profiles, floor surface material and maximum ramp gradient, expected operating hours per shift, and any unique facility constraints (such as low doorway overhead clearances or hazardous zone ratings).
Our exclusive Project Tracking System gives procurement managers complete digital visibility over their capital equipment order. You can track steel fabrication, robotic welding completion, wiring harness assembly, multi-stage factory acceptance load testing (FAT), container loading, and ocean shipping tracking numbers directly through a dedicated web portal, ensuring total schedule transparency.
Whether you require a custom OEM electric stacker fleet, heavy-duty selective pallet racking, mezzanine platforms, or standardized wire mesh containers, our engineering team delivers precision, safety, and turnkey performance tailored to your facility.
