Engineered for full compatibility with high-density automated warehouses, pallet racking beams, and standard logistics handling machinery. Review our core warehouse portfolio below.

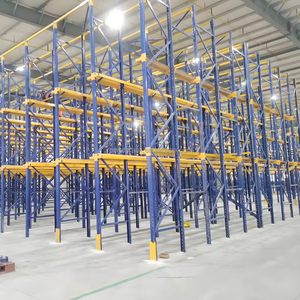

Continuous lane racking offering maximum cubic utilization for high-volume, low-SKU goods. Designed with integrated guide rails for safe forklift access.
Food-grade, ruggedized collapsible container engineered for fast parts handling, intermodal logistics, and cleanroom warehouse hygiene standards.
Heavy-duty structural steel mezzanine systems that double usable footprint without facility expansion, complete with load gates and safety stairs.
Rack-supported multi-tier platform ideal for manual order picking, carton flow, archive storage, and e-commerce distribution facilities.
Engineered for cold storage and bulk warehousing. Anti-corrosive electrostatic paint system protects against humidity and severe operating wear.

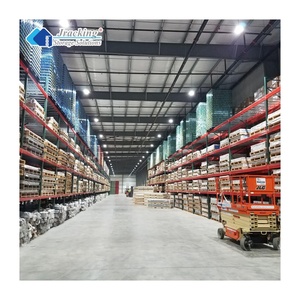

Interchangeable teardrop hole pattern with automated safety lock pins. Guarantees 100% selective access to all pallet storage locations.
Heavy-gauge hot-rolled H-beam structural columns built to store continuous timber packs, steel bars, pipes, extruded profiles, and non-standard loads.
Engineered platform solution combining mezzanine flooring with wire cage security zones, conveyor access points, and pallet staging stations.
In modern industrial logistics, static calculations, weld-point shear strength, and anti-tipping mechanics are direct safety considerations. A CE certified pallet mesh cage is not merely a wire container; it is an engineered load-bearing asset.
Pallet cages stacked four to six tiers high within logistics hubs fall strictly under load stability requirements governed by European harmonization standards. Structural deformation under maximum dynamic loading must never exceed 1/200th of the span distance. Uncertified mesh cages pose extreme structural risks during overhead forklift placement, seismic events, or uneven floor settlements.
| Cage Model Class | Dimensions (L × W × H mm) | Mesh Wire Spec / Pitch | Static Load Rating | Dynamic Stacking | Corrosion Protection |
|---|---|---|---|---|---|
| PMC-Standard 800 | 800 × 600 × 640 | Ø 4.8mm / 50×50mm | 800 kg | 4 Tiers (Loaded) | Electro-Galvanized (12μm) |
| PMC-Euro Heavy 1200 | 1200 × 800 × 890 | Ø 6.0mm / 50×100mm | 1,500 kg | 4 Tiers (Loaded) | Hot-Dip Galvanized / Powder |
| PMC-GCC Master 1210 | 1200 × 1000 × 1000 | Ø 6.2mm / 50×50mm | 2,000 kg | 3 Tiers (Loaded) | Hot-Dip Galv (65μm) |
| PMC-Automotive X-Load | 1380 × 1050 × 1100 | Ø 6.4mm / 25×50mm | 2,500 kg | 4 Tiers (Loaded) | Dual-Coat Thermoset Epoxy |
Fabricated using cold-drawn Q235B low-carbon steel wire. Automated multi-spot projection welders join each intersection, ensuring every weld withstands a shear fracture force exceeding 2,500N without micro-fracturing or surface embrittlement.
Equipped with half-drop front gates featuring spring-loaded anti-vibration latches. Operators can pick stock quickly without de-stacking the cage structure, maintaining safety compliance under strict warehouse ergonomics standards.
Engineered with heavy-duty perimeter spiral hinges that collapse within seconds. Unloaded cages fold completely flat, cutting reverse freight volume by up to 75% across intermodal shipping routes and return logistics.
Warehouse automation, carbon emission metrics, and IoT fleet tracking are transforming the design and sourcing of industrial pallet cages worldwide.
Warehouses are rapidly transitioning from manual forklift drivers to Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Future pallet cage specifications mandate reinforced undercarriages with optical sensor alignment plates, tight manufacturing tolerances (±1.5mm), and laser-guided base runner channels to eliminate mechanical mispicks.
Industrial procurement teams now demand continuous tracking across high-value reverse distribution loops. Modern pallet mesh cages integrate ruggedized UHF RFID transponders or BLE beacon brackets directly into the cage corner post framework, enabling real-time stock-level visibility, dwell-time alerts, and automated yard check-in routines.
With corporate ESG policies and the EU Carbon Border Adjustment Mechanism (CBAM) taking center stage, pallet cage manufacturers are shifting toward low-emission electric-arc-furnace (EAF) steel and 100% recyclable powder coatings. Buyers increasingly require Environmental Product Declarations (EPD) demonstrating full circularity over a 15-year operational lifecycle.
Combining 18+ years of structural engineering discipline with seamless supply chain execution across Dubai, Sharjah, Abu Dhabi, and global logistics corridors.
Unlike standard brokers, our in-house technical team manages every phase: initial spatial laser surveys, structural finite-element load design, component fabrication, on-site assembly, anchoring, and final safety sign-off. You deal with one reliable engineering partner.
Our exclusive Project Tracking System provides transparency across your entire order. Facility managers can log in anytime to track raw material preparation, weld-batch testing, shipping container dispatch, and daily on-site installation progress with clear milestone visibility.
From complex multi-tier structural mezzanines and deep drive-in cold storage facilities to multi-thousand fleet cage deployments, our systems perform in high-throughput environments for leading 3PL operators, retail distribution hubs, and automotive manufacturers.
Direct technical answers to help facility directors and procurement managers make fully informed storage choices.
Whether you require standard Euro-spec foldable pallet cages, heavy-duty structural steel platforms, or high-bay drive-in storage installations, Gulf Racking & Shelving LLC provides turn-key engineering support from structural survey to site handover.
